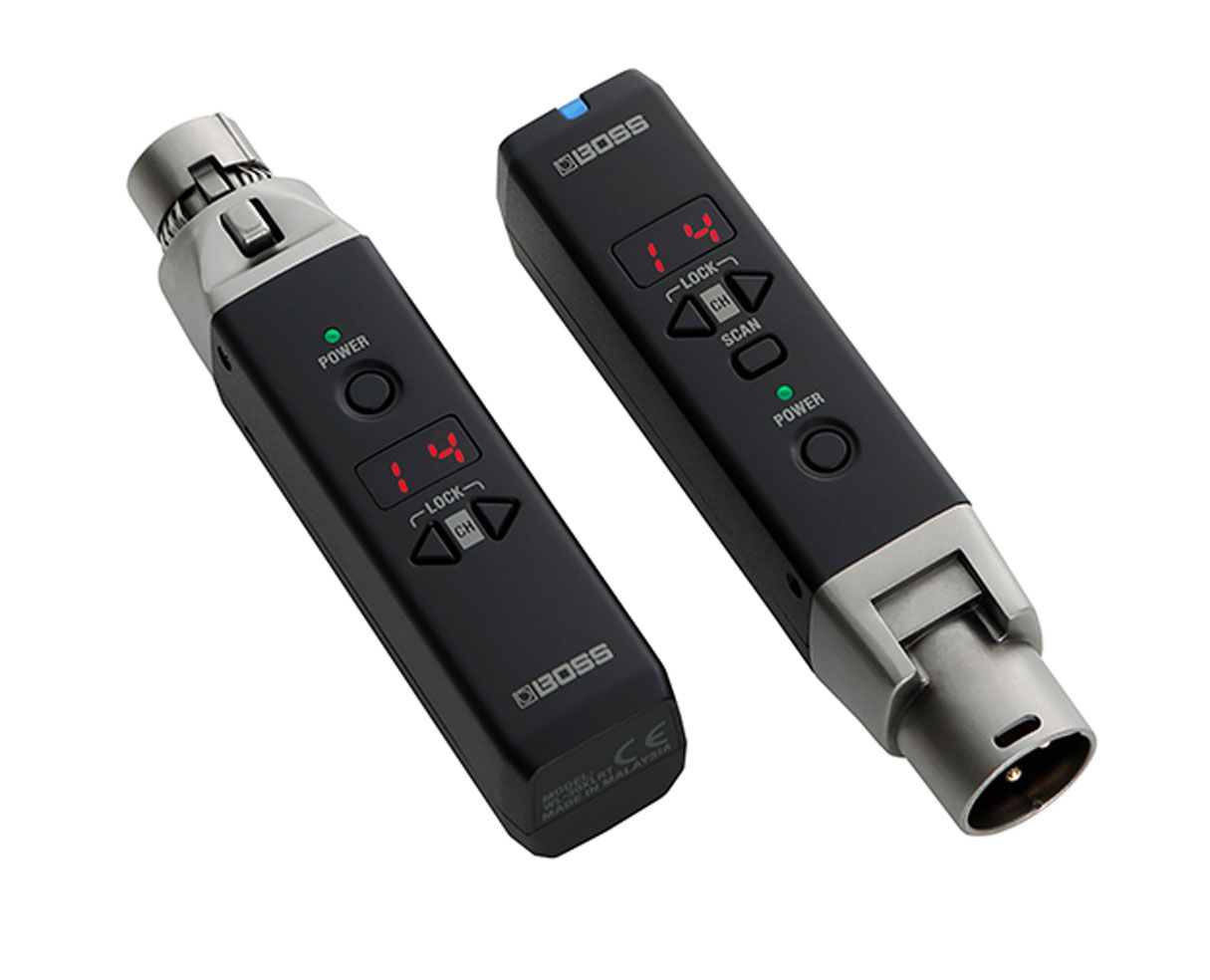

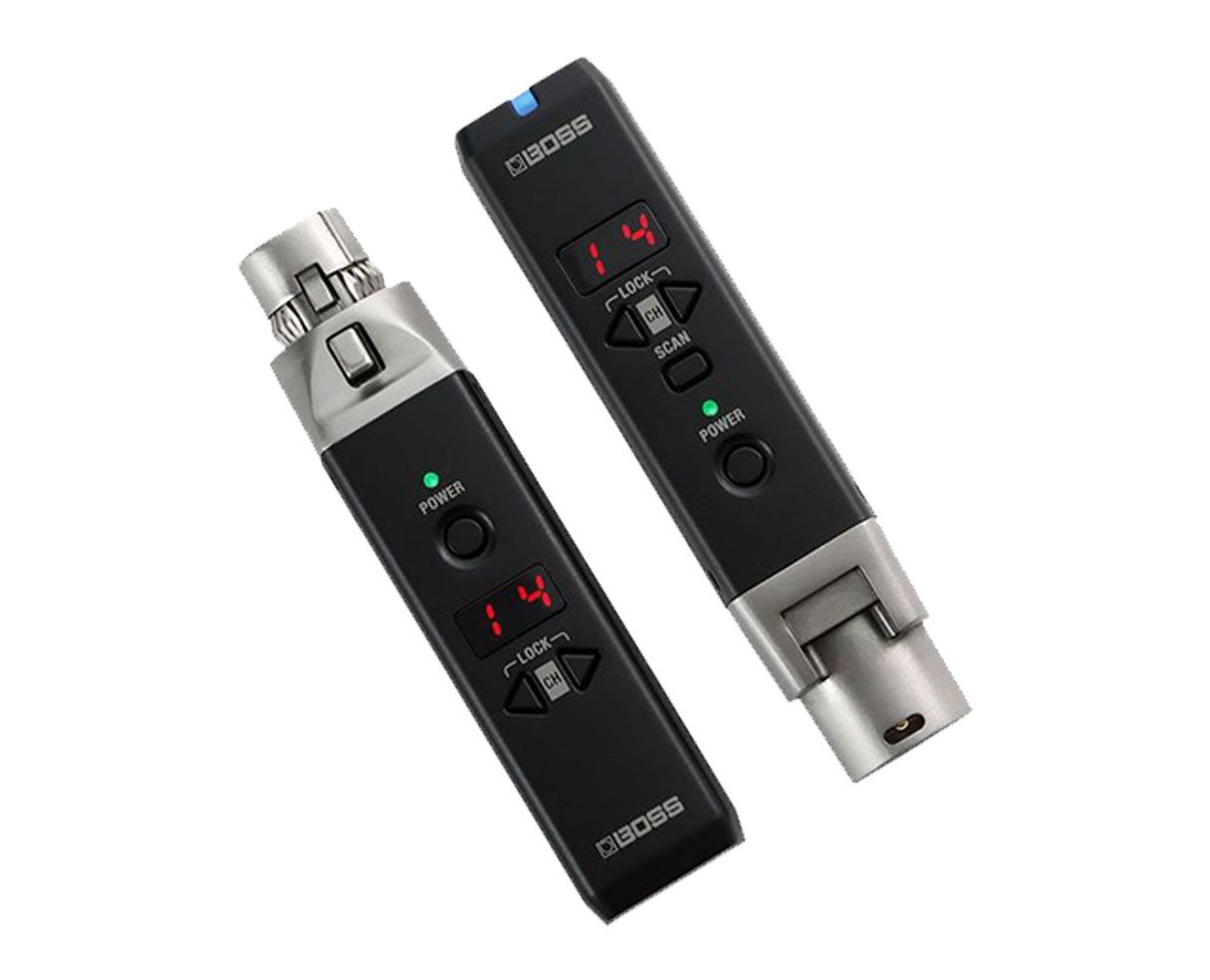

Boss WL-30XLR Wireless System

A Plug-and-Play Wireless Mic Experience
Plug-and-play wireless mic system with hassle-free set up, rock-solid connectivity, and long runtime via convenient AA battery power.
The WL-30XLR brings the freedom of BOSS’s leading wireless technology to your favorite XLR dynamic mic. Set up is quick and streamlined, eliminating the connection hassles found with other systems. Performance is rock solid, with 14-channel scanning and long transmission range. And common AA alkaline batteries provide long-lasting operation, plus fast change-out to keep the show rolling. From singers, speakers, and beatboxers to DJs, MCs, and beyond, the WL-30XLR makes it easy for everyone to embrace premium wireless microphone sound.

Plug-and-play wireless system for a standard dynamic XLR microphone
Premium audio performance with lightning-fast BOSS wireless technology
Fast, two-step visual process for hassle-free set up
Up to 11 hours of runtime with regular AA alkaline batteries
Transmission range: 230 feet/70 meters (line-of-sight propagation)*
Rock-solid wireless performance with 14-channel scanning
Battery LED for checking available runtime
Light and compact transmitter for comfortable handheld performance
Receiver connects to an XLR mic input on a mixer, amplifier, audio interface, etc.
Channel lock function for worry-free operation

Step Up to Wireless Freedom
For any performer or speaker who uses a microphone to communicate with an audience, nothing beats the liberation of wireless. Movement is unrestricted, with no cables to trip over and get in the way. And for stand-mounted applications, it eliminates the need to route yet another cable to the audio mixer or stage amp. Once you experience wireless freedom with the WL-30XLR, you’ll never want to go back to a mic cable again.
One, Two, Done
The WL-30XLR makes wireless set up simple, thanks to an automatic scanning process that’s smooth, reliable, and hassle-free. After connecting the receiver to an XLR mic input on your mixer or other audio destination and the transmitter to your dynamic mic, you can get up and running with a quick two-step process. Just press a button on the receiver to automatically scan 14 channels and find the best one for your environment, and then confirm the setting on the transmitter—that’s it!
Premium Performance with BOSS Wireless Innovation
The WL-30XLR leverages the innovative BOSS technologies behind the acclaimed WL-series wireless products for guitar, bass, and other instruments, as well as the Waza-Air and Katana-Air wireless amplification systems. Lightning fast processing provides exceptional sound with ultra-low latency, plus robust line-of-sight transmission up to 230 feet/70 meters.
No Charging Needed
The WL-30XLR’s receiver and transmitter each use a single AA alkaline battery, allowing you to quickly refresh their power with no need to wait for charging. Runtime is up to 11 hours, good for multiple gigs and rehearsals. And when the juice runs out, you can swap batteries in seconds and be back in action right away.

Receiver
Wireless Format

BOSS proprietary digital audio format

Wireless carrier frequency

4 GHz

Compatible Channels

14 (May vary due to local conditions)

Transmission Range

230 feet line-of-sight (May vary due to local conditions)

Latency

3 ms

Dynamic Range

110 dB or greater

Frequency Response

20 Hz–20 kHz

Nominal Output Level

-40 dBu

Non Clip Maximum Output level (1 kHz, typ.)

0 dBu

Output Impedance

600 ohms

Recommended Load Impedance

10 k ohms or greater

Controls

POWER button
CH button
SCAN button

Display

7 segments, 2 characters (LED)

Indicator

Power

Receive
Connectors

OUTPUT jack : XLR type

Power Supply

Alkaline battery (AA, LR6) x 1

Current Draw

130 mA

Expected Battery Life Under Continuous Use

Alkaline battery (AA, LR6) : Approximately 11 hours

Dimensions

23 (W) x 27 (D) x 99 (H) mm
15/16 (W) x 1-1/16 (D) x 3-15/16 (H) inches

Transmitter (WL-30XLRT)
Nominal Input Level

-40 dBu (4 k ohms)

Non Clip Maximum Input level (1 kHz, typ.)

0 dBu

Controls

POWER button
CH button

Display

7 segments, 2 characters (LED)

Indicator

POWER

Connectors

INPUT jack : XLR type

Power Supply

Alkaline battery (AA, LR6) x 1

Current Draw

120 mA

Expected Battery Life Under Continuous Use

Alkaline battery (AA, LR6) : Approximately 14 hours

Dimensions

23 (W) x 27 (D) x 99 (H) mm
15/16 (W) x 1-1/16 (D) x 3-15/16 (H) inches

SKU: BOS-WL30XLR

Brand: Boss

Weight: 3.800000
