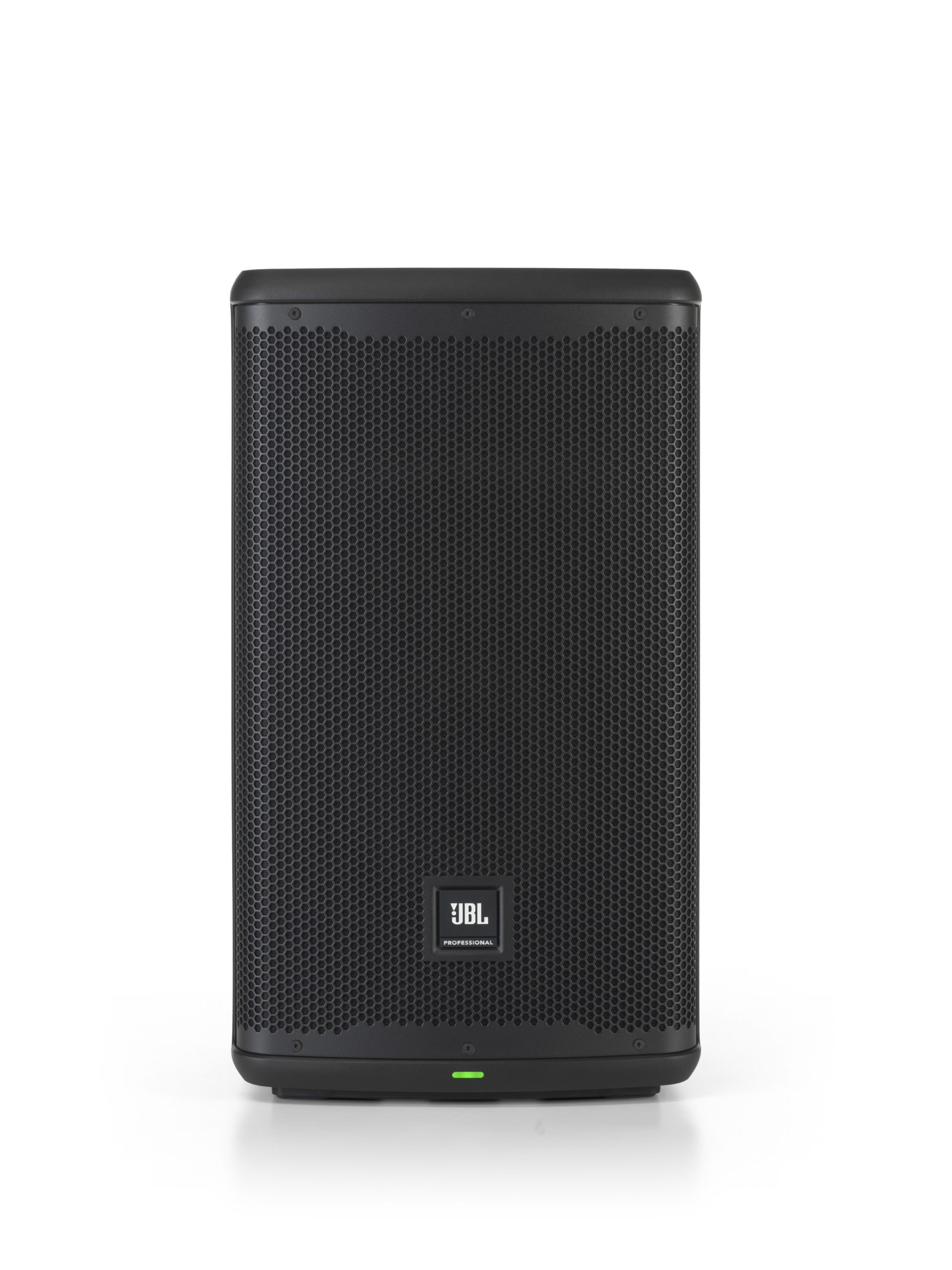

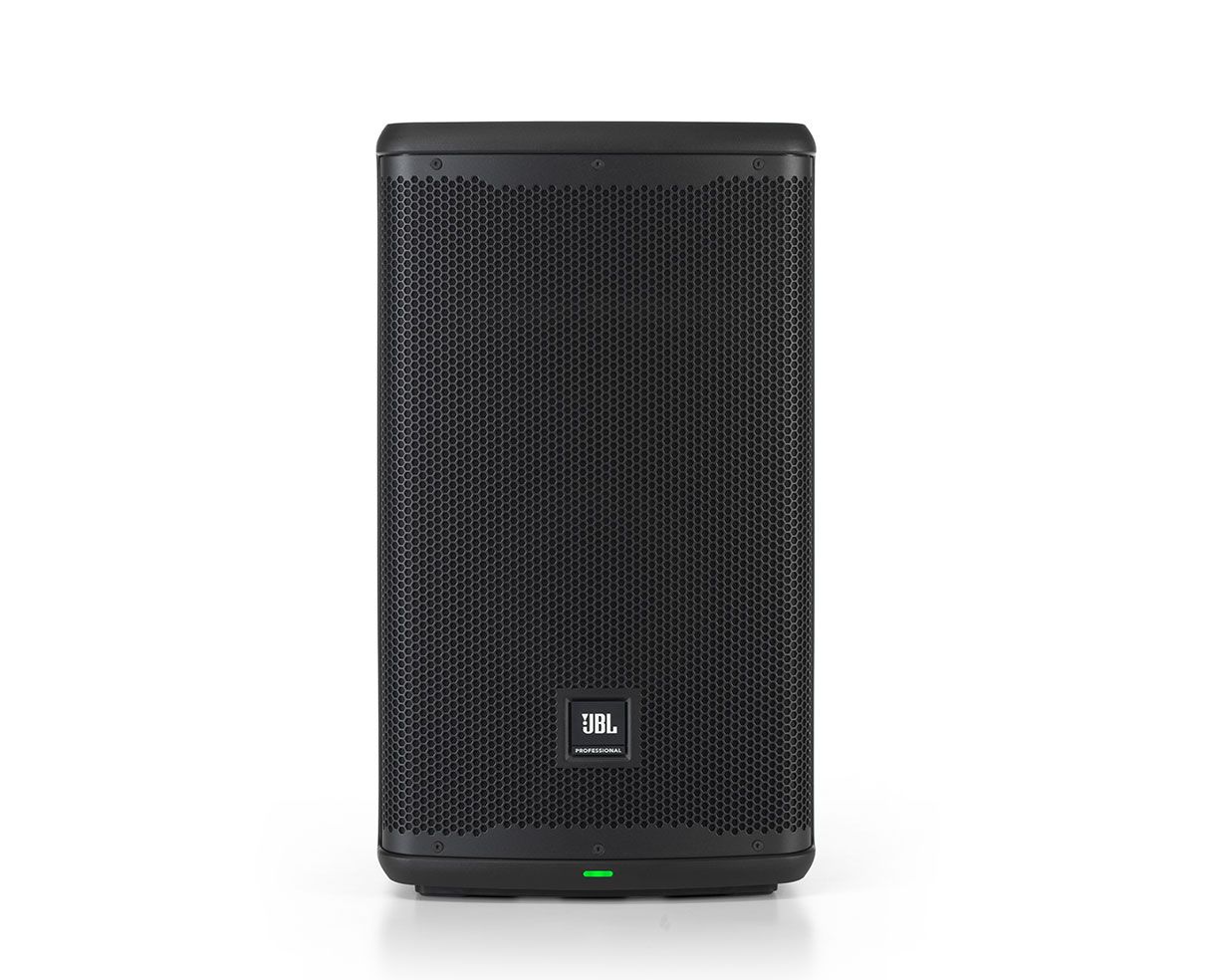

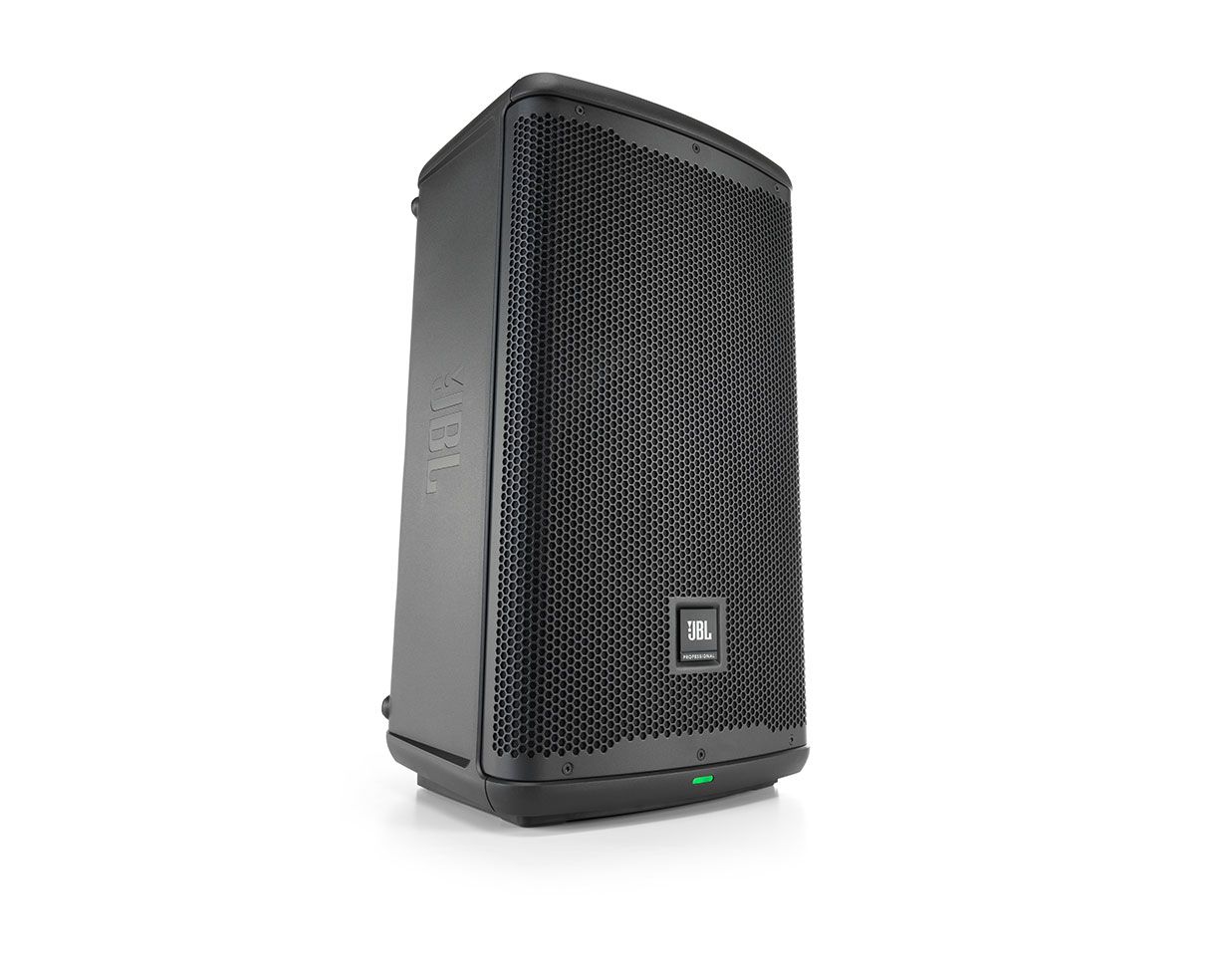

JBL EON710

Launched in 1995, JBL’s best-selling EON family of PAs set the benchmark for how great a powered loudspeaker system can be.
The JBL EON710 10-inch loudspeaker is part of JBL’s new EON700 Series of powered PAs, which represents a major step forward in innovation and technology : JBL engineers used exclusive, state-of-the-art design and measurement techniques to deliver the best-performing loudspeakers in their category, regardless of application.
The EON700 Series leverages the latest acoustic science, transducer designs, cabinet materials and advanced DSP and control technologies to deliver extraordinary performance in a fully professional, highly flexible, easy to use, portable system.
Acoustics and Amplifier
JBL’s advanced waveguide and transducer technologies, coupled with highly efficient amplification, ensure uniform coverage across the entire listening area, even when you push the system to the limit.
The EON710’s woofer is redesigned for lower impedance and higher efficiency, an improved horn delivers a smooth off-axis beamwidth and JBL’s powerful 2414H compression driver features a premium neodymium magnet for balanced response in a lightweight footprint. The speaker is powered by 1,300 watts of ultra-efficient discrete Class D amplification, for clean, clear sound. It all adds up to superior coverage, consistency and intelligibility at any volume.
Advanced DSP and Control
The EON710’s advanced DSP package provides comprehensive control over EQ, limiters, delay, dbx Automatic Feedback Suppression, ducking and other functions. Access settings on-speaker using an integrated backlit LCD screen, or from anywhere in the venue using the JBL Pro Connect App. Built-in Bluetooth 5.0 audio streaming and control take advantage of the newest protocol’s security features, low latency, broad range and improved audio fidelity.
System Versatility

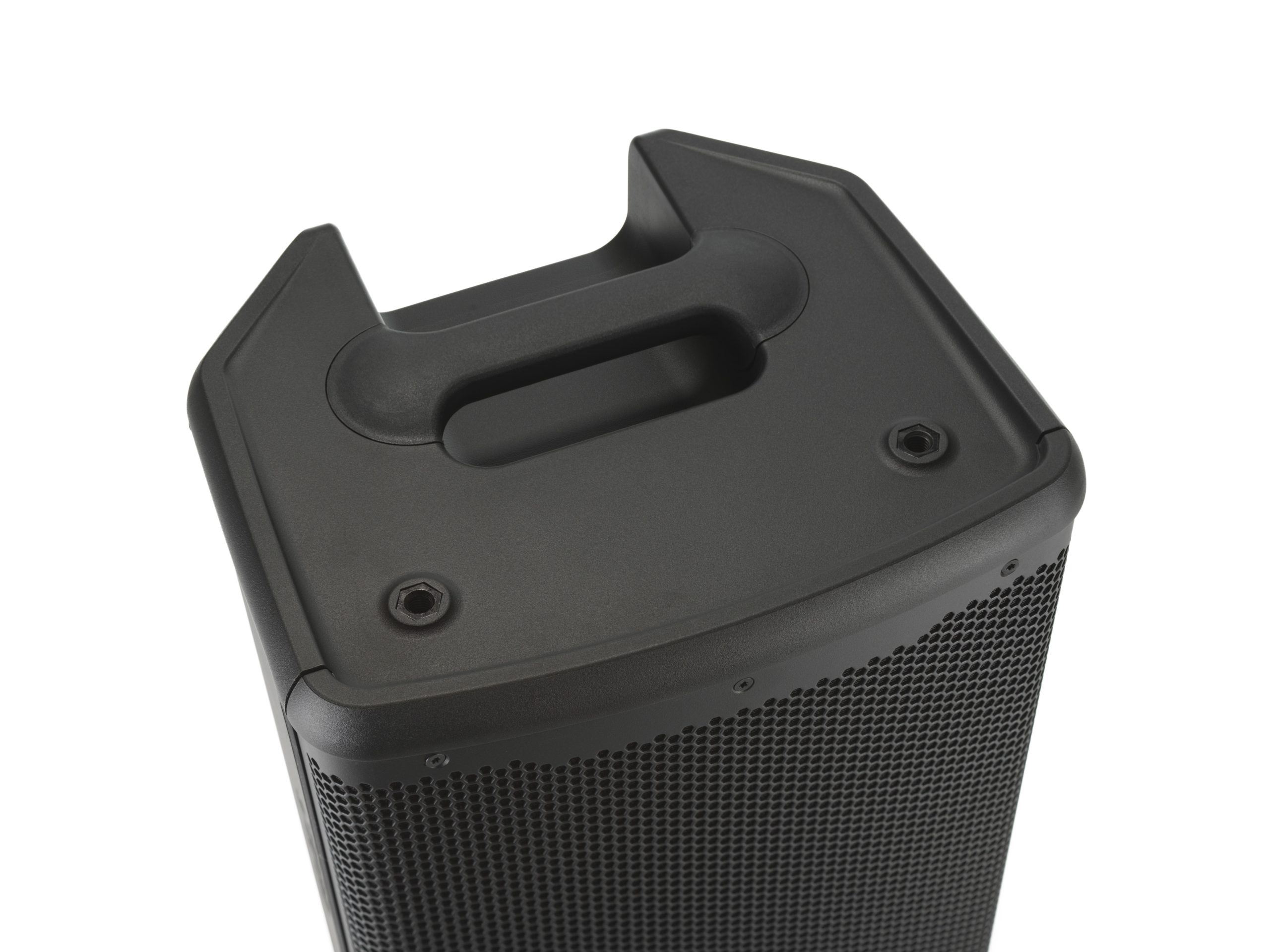

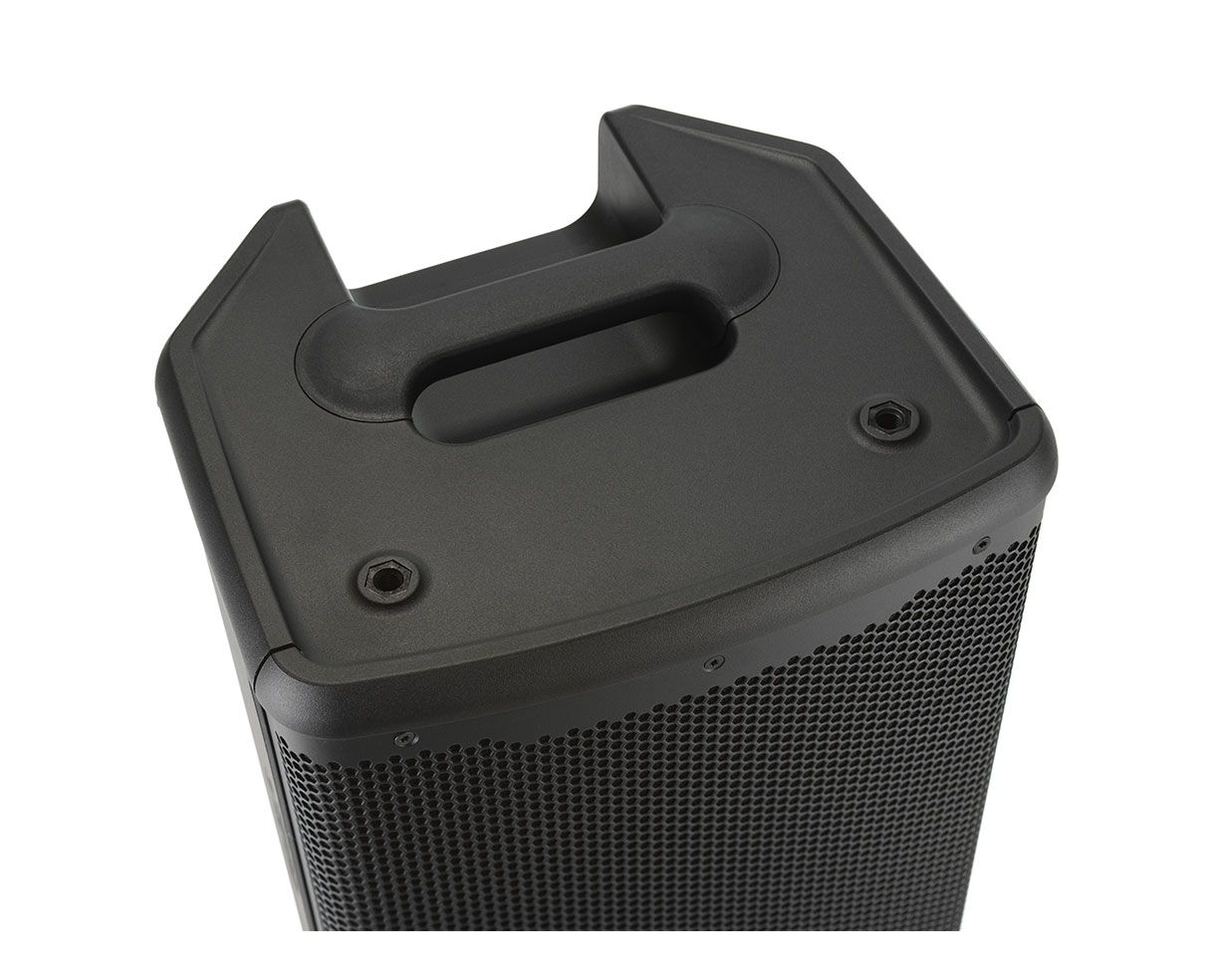

EON710 loudspeakers can be used as main PA speakers or floor monitors. Top and rear suspension points enable flying speakers; rear suspension points serve as connections for fixed installations, using an optional universal yoke mount.
Indexed feet molded into enclosures enable a range of acoustic configurations and secure stacking for traditional stand-up configurations and convenient storage and transport. (Companion EON718S subwoofers feature a threaded pole mount for full-range speakers and are easily stacked for cardioid configurations.)
Rugged and Reliable
All audio products have useful lives, and JBL engineers are committed to making that lifespan as long as possible—not only in terms of reliability, but in terms of how good the system sounds every time it’s turned on.

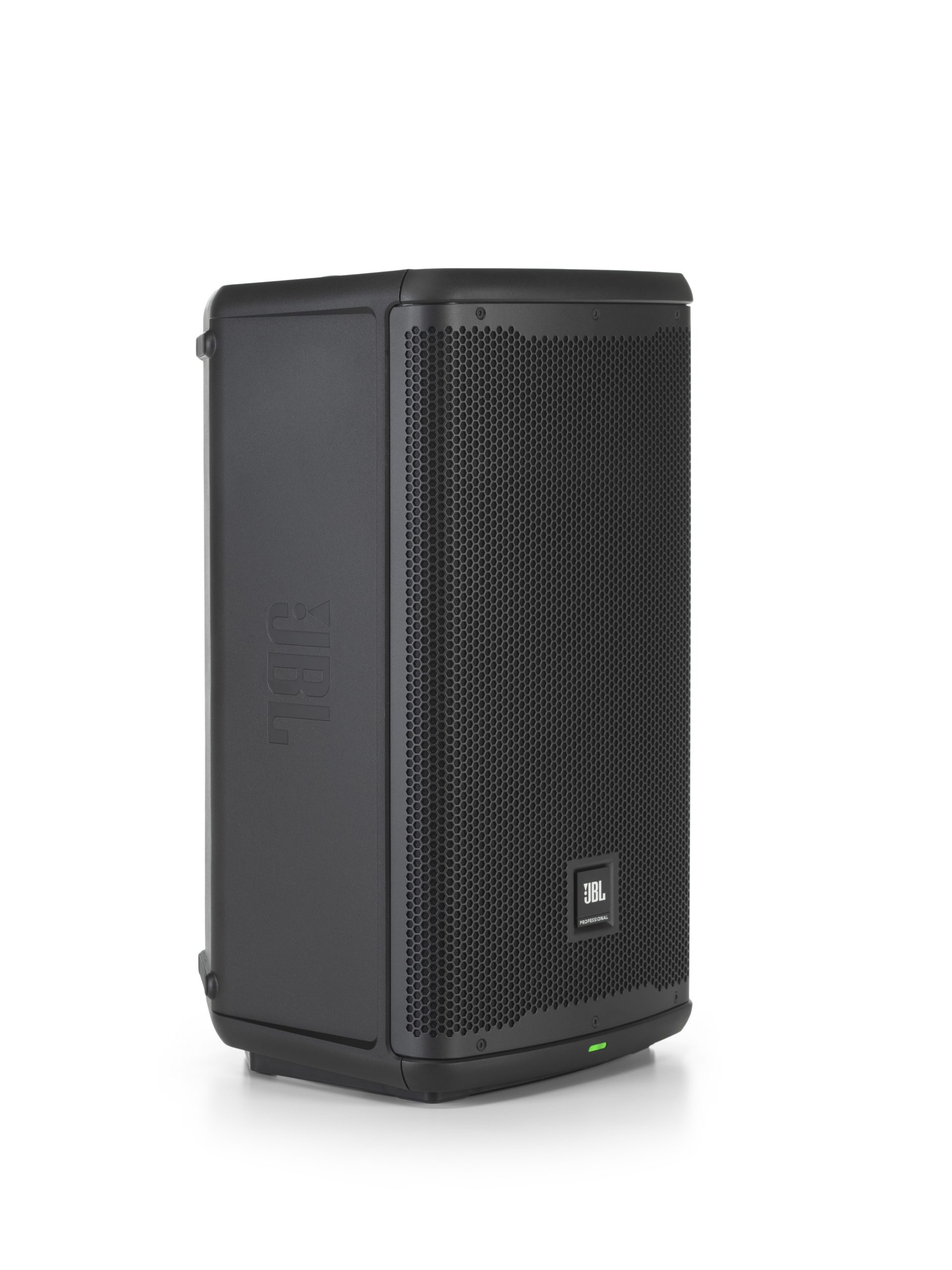

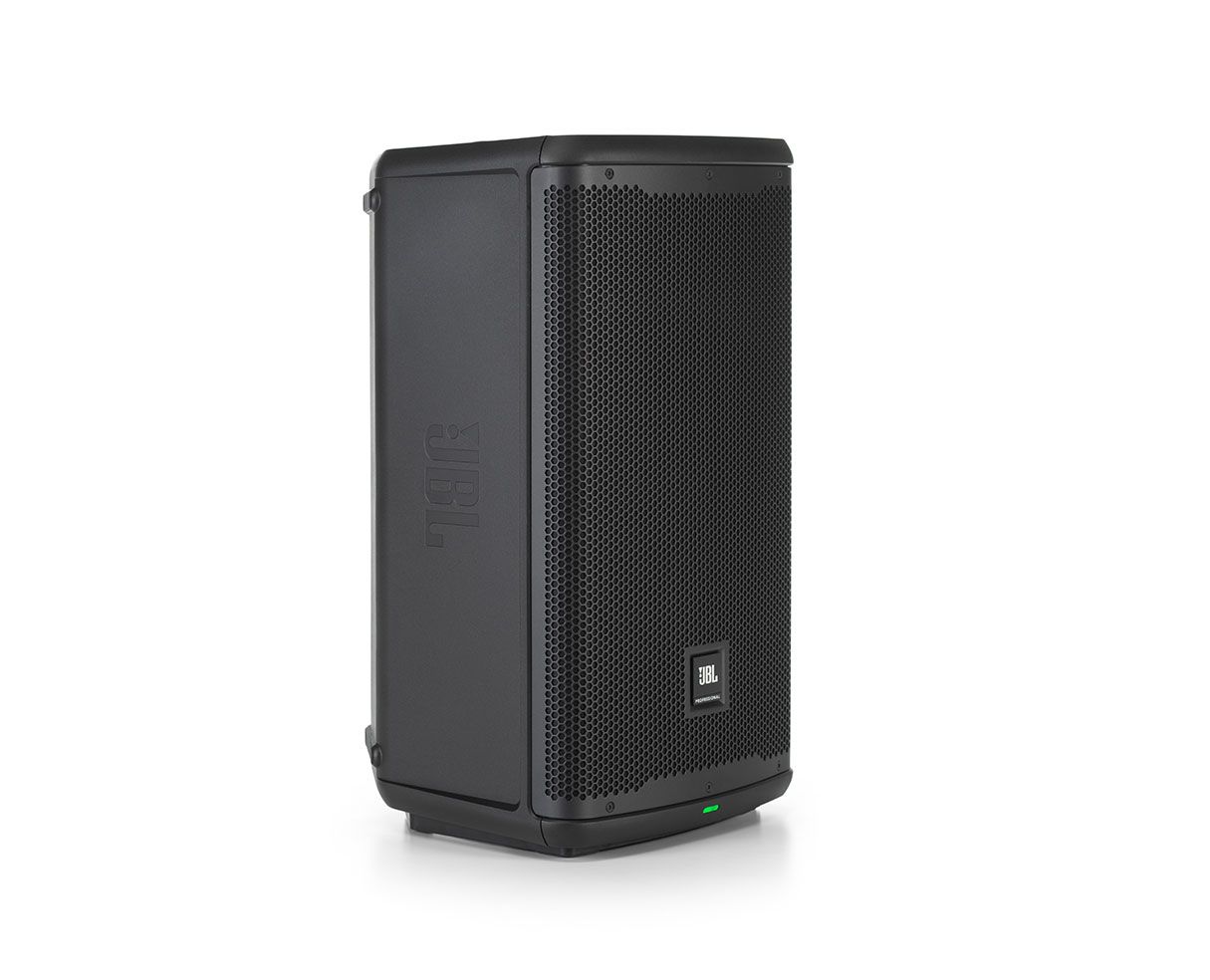

The EON710 is housed in an FEA-optimized composite enclosure, taking advantage of injection-molding and mechanical-shaping techniques for added durability without sacrificing cabinet size or performance. Computer-optimized ergonomic handles make moving boxes a breeze.
Like every JBL Professional product, the EON710 undergoes stringent testing that goes above and beyond any conditions the product would face in the real world. Our industry-leading 100-hour power test ensures longevity so musicians and audio engineers can rely on JBL components in any scenario.

Custom-designed 10-inch woofer
2414H compression driver
Redesigned high-frequency horn
Power : 1,300W peak (650W cont)
Frequency response : 52 Hz–20 kHz (-10 dB); 65 Hz–20 kHz (-3 dB)
Max SPL : 125 dB
Dispersion : 110° H x 60° V

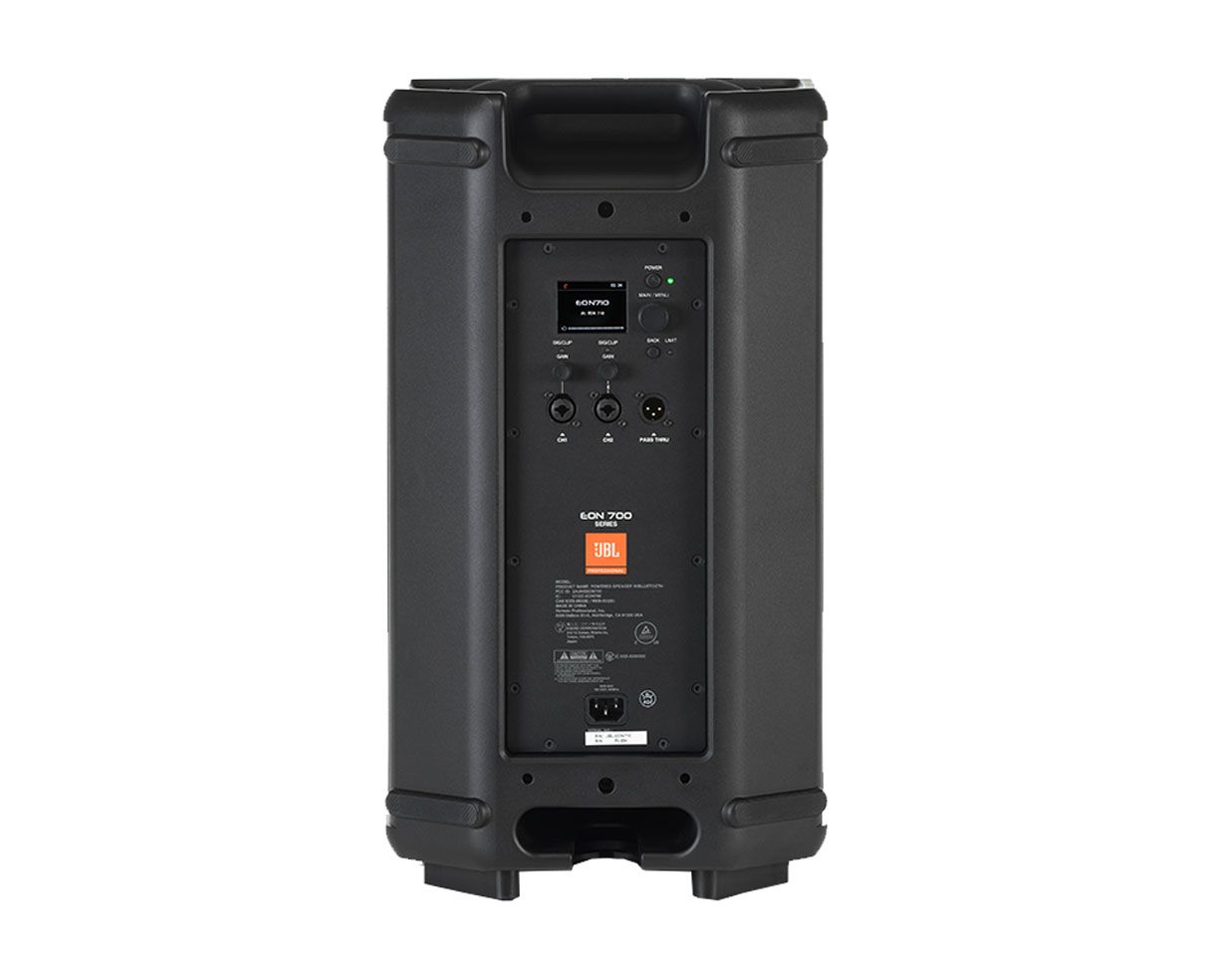

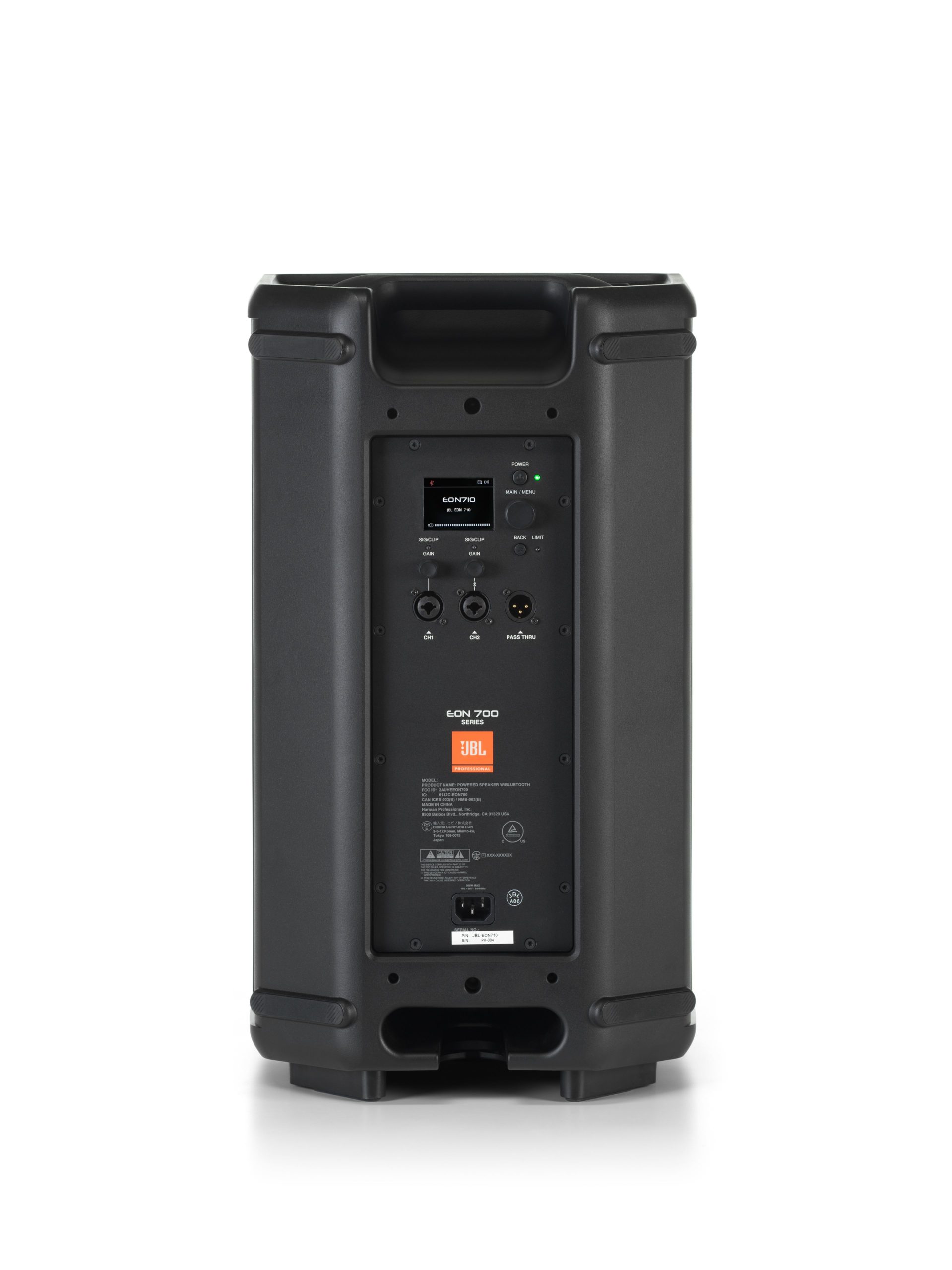

Audio I/Os : 2 XLR Combo, 1 XLR passthrough
Advanced dbx DSP : Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ
Built-in 3-channel digital mixer
Backlit color LCD screen provides easy access to functions
Universal JBL Pro Connect app control
Bluetooth 5.0 streaming
Durable talc-reinforced polypropylene cabinet and metal grille
Ergonomic handle simplifies transport
Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
Stackable cabinets allow easy storage

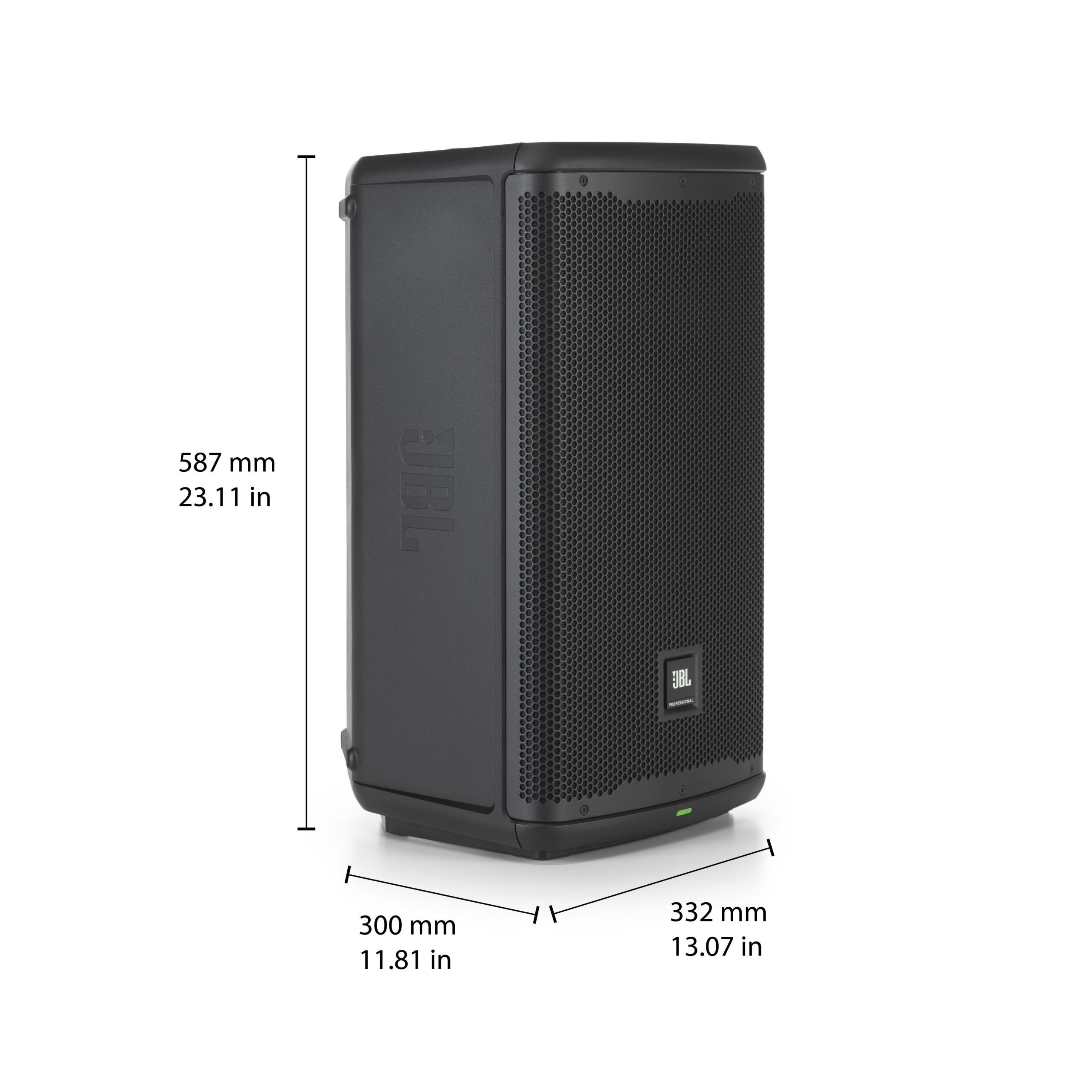

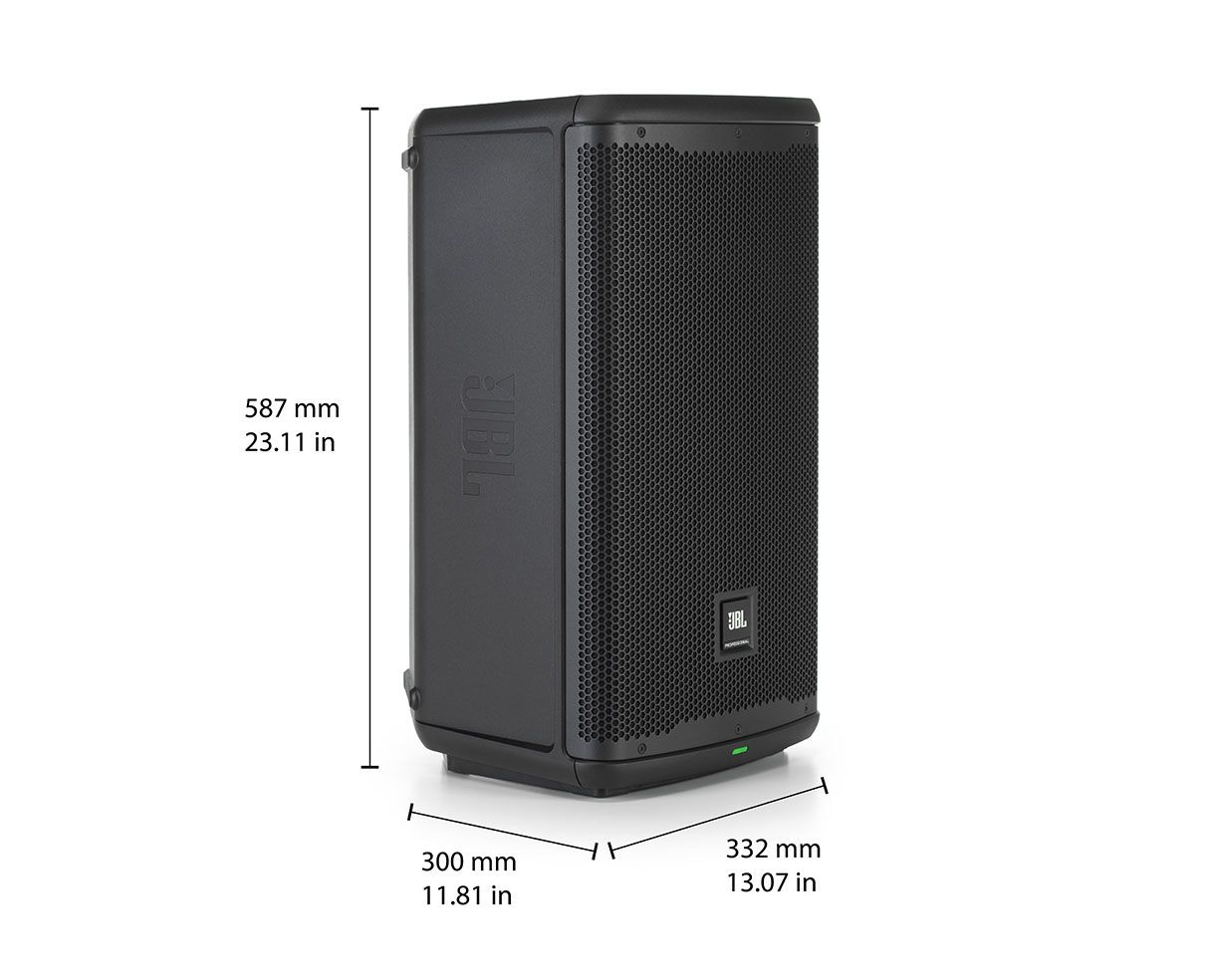

Dimensions : 11 x 13.07 x 11.81 in (587 x 332 x 300 mm) (HxWxD)

SKU: JBL-EON710

Brand: JBL

Weight: 33.500000

Dimensions (WxHxD): 11 x 13.07 x 11.81 in
