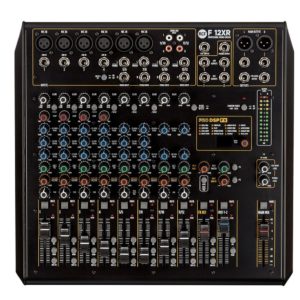

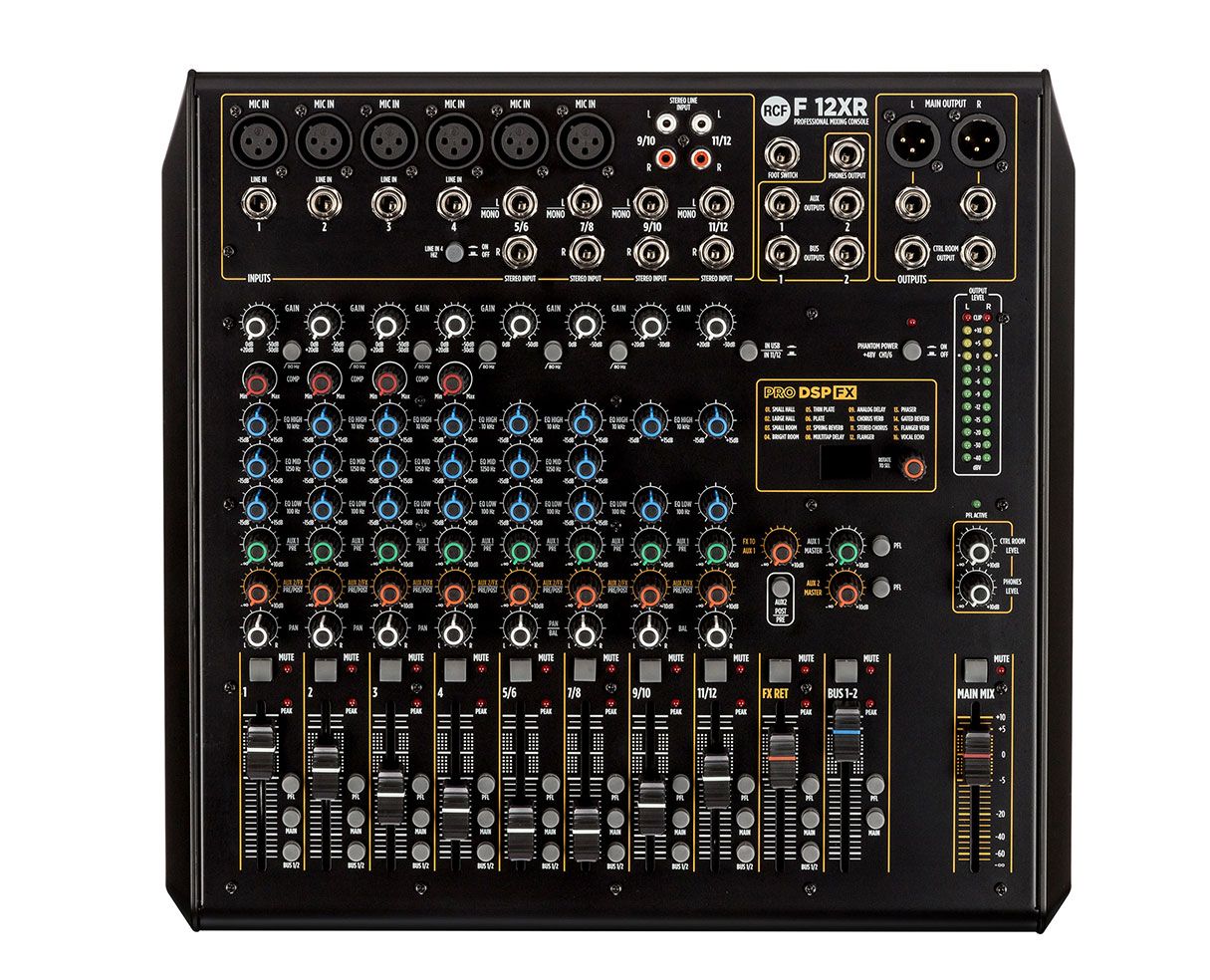

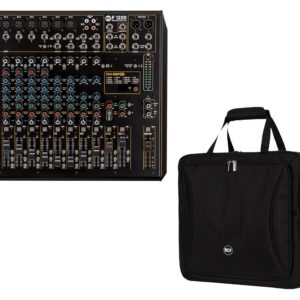

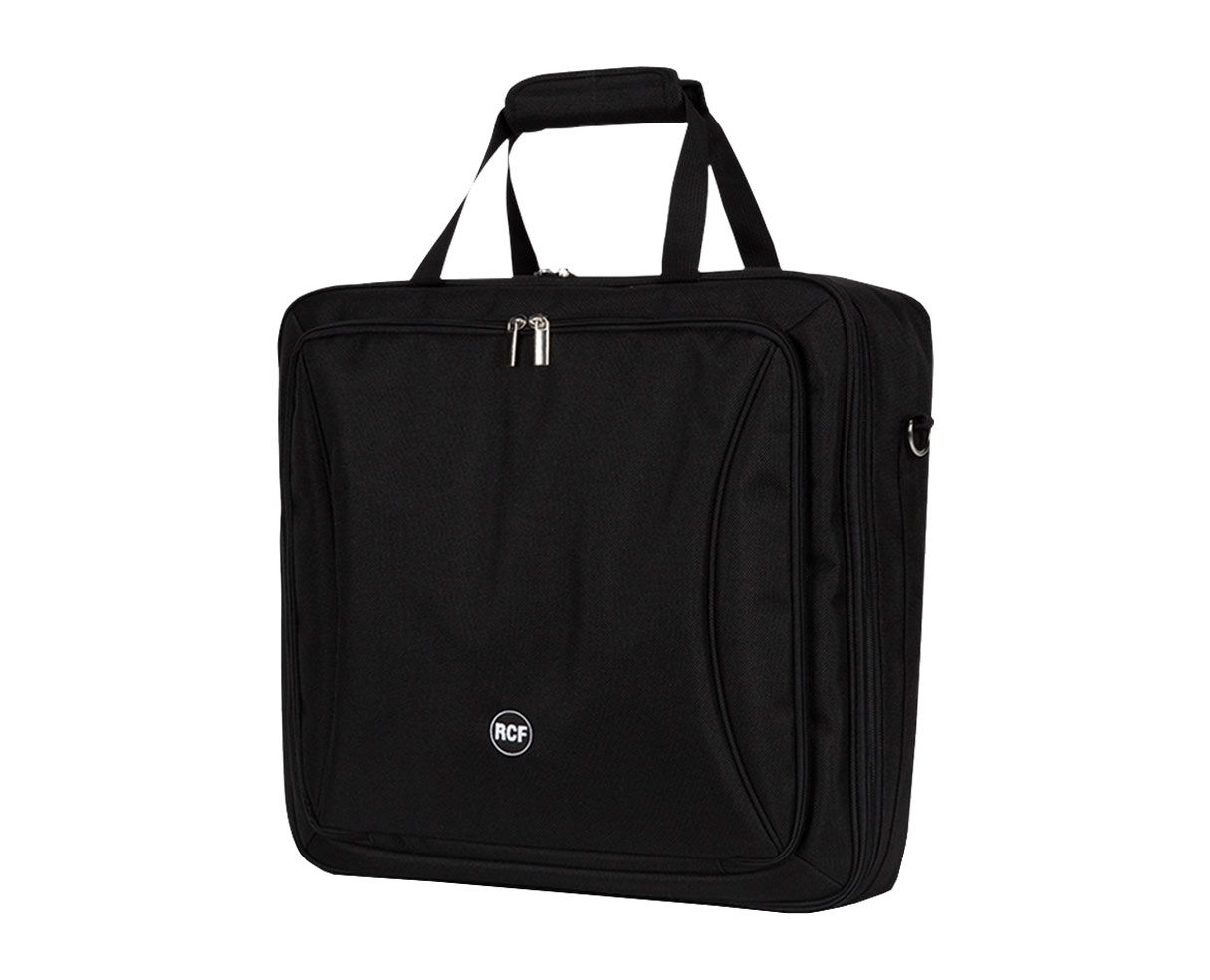

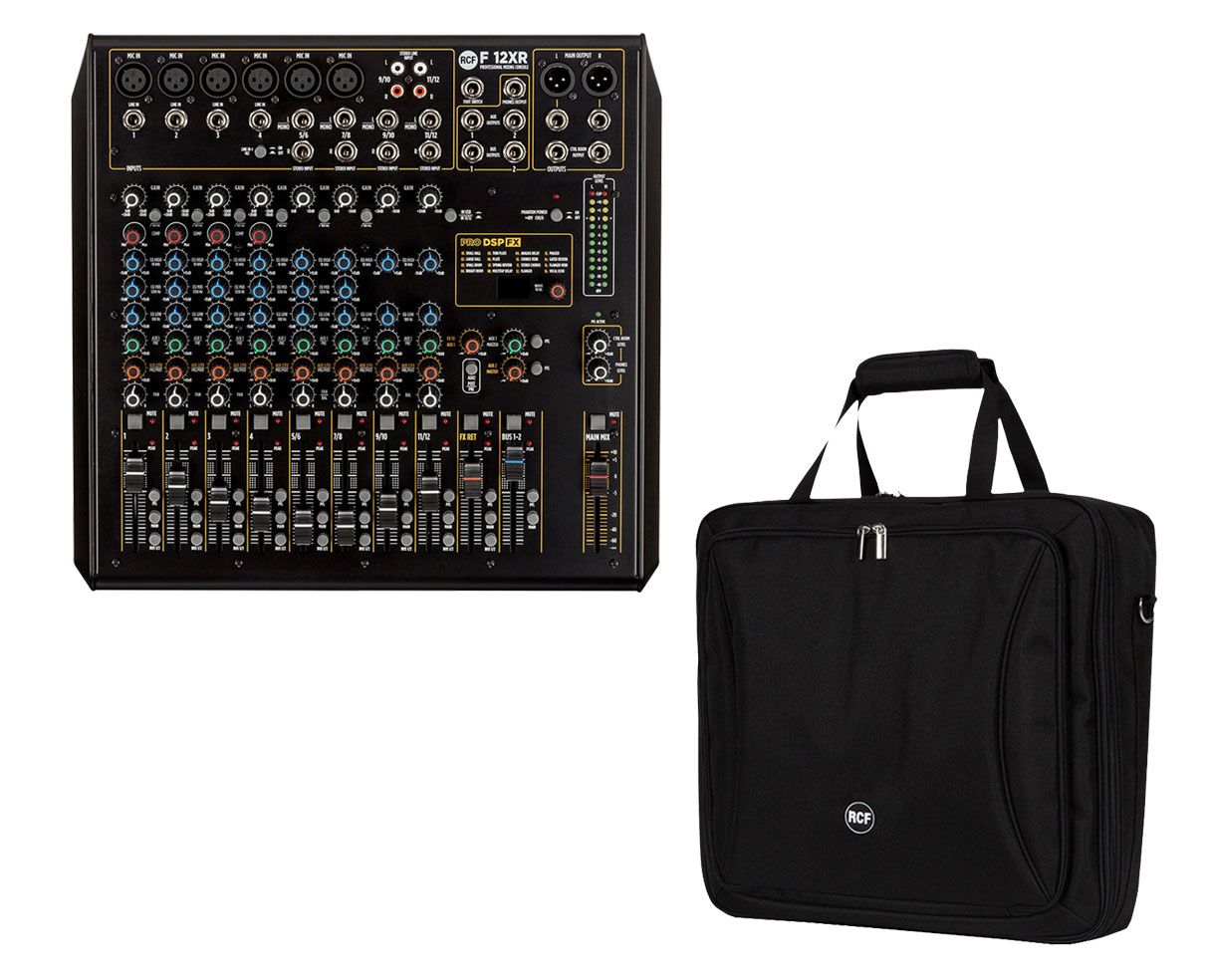

Package Includes :1 X RCF F 12XR1 X RCF AC-BAG-F12-XRCF F 12XRThe F 12XR features 6 mic preamp inputs, 4 mono line inputs, 4 stereo line inputs plus multi-FX and recording via USB port, with balanced main output (Stereo XLR + TRS) and 4 single control compressors. The mono channels are provided with 3-band EQ and stereo with 2-band. The mixer features 16 PRO DSP internal presets and 2 aux sends (1 pre,1pre/post fader). It also features a stereo output BUS and 60mm faders.Enhanced Analog Mixing FlexibilityRCF’s next generation F Series mixers build on the rich analog legacy found in the professional E Series, featuring high-quality sound in four formats from 6 to 16 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers, and Echoes. USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.State Of The Art EQState-of-the-art 3 band EQ on mono channels, 2 bands EQ on stereo channels for precise and exquisitely transparent shaping of sound.High Quality PreamplifiersHigh quality preamplifiers with phantom power, inspired by the E-Series Mixers, offer high quality sound and dynamics. Line level signals are less noisy when connected using the separate line input jack socket. The channel 4 features Hi-Z input level for musical instruments such as acoustic instruments with piezo transducers, electric bass, and guitars or stompboxes RCF AC-BAG-F12-XPadded duffle bag for mixers RCF F 12XR with handle and shoulder carrying strap. Wide front pocket with separated compartment for tablet computers or other accessories.
RCF F 12XR6 Mic preamp inputs, 4 mono Line inputs4 Stereo line inputsPRO DSP FX onboard with 16 presetsStereo recording and playback via USB port4 single control compressorsBalanced main output +28 dB (Stereo XLR + TRS)One Stereo output bus and 2 Aux sends (1 pre, 1 pre/post)60 mm fadersInternal universal power supplyDesigned and engineered in ItalyAuxiliary SendsAux : 1 Pre/PostFX Post : 1Compressors Rcf Compressors : N° 4 Single Control Compressors On Channels 1 To 4Electrical SpecificationsPower Consumption (W) : 24 WPower Supply : InternalVoltage Requirements : 100 V – 240 VFrequency Response : 20 Hz ÷ 20 KhzThd+N, 20db Gain, 0dbu Out (% A-Weighted) : <0,02EqDescription : High: +/-15 Db @ 10 Khz Shelvingmid: +/-15 Db @ 1,250 Khz Bell low: +/-15 Db @ 100 Hz ShelvingInput Channels Eq : 2 Shelving / 1 GenericInputsGain Range : 0 Db ÷ -50 DbGain Selection : 20 Db ÷ -30 DbHi-Z Line Inputs Impedance (Mohm) : 1 MohmHi-Z Line Inputs : 1Mic Inputs Impedance (Kohm) : 14 KohmLine : 4Line Input Impedance (Kohm) : 21 KohmLow Cut : 80 HzMic : 6Phantom Power +48v : YesStereo Line : 4Stereo Line Gain Selection : 20 Db ÷ -30 DbStereo Line Input Impedance : 15 KohmInternal EffectsSend Effects : 1Other FeaturesFootswitch : YesOutputsAux Output : 2Aux Send : 1Control Room : YesFX Send : 1Group Out : 1Main Mix : 1Phones : 1Outputs Specifications Aux Out Level (Dbu) : 28 DbuGroup Out Level (Dbu) : 28 DbuMain Out Level (Dbu) : 28 DbuPhones Out Impedance (Ohm) : 150 OhmPhysical SpecificationsCabinet/Case Material : MetalColor : BlackStandard ComplianceCe Marking : YesUSB AudioPlay TRK : 2Rec TRK : 2Supported Sample Rate (Khz) : 44.1, 48.0Type : B RCF AC-BAG-F12-XGeneral SpecificationsMatched Mixers : F 12XRPhysical SpecificationsColor : BlackStandard ComplianceCE Marking : Yes SKU: RCF-F12XR-BUN2 Brand: RCF Weight: 14.330000
