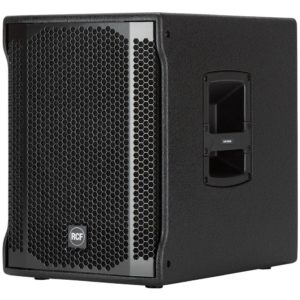

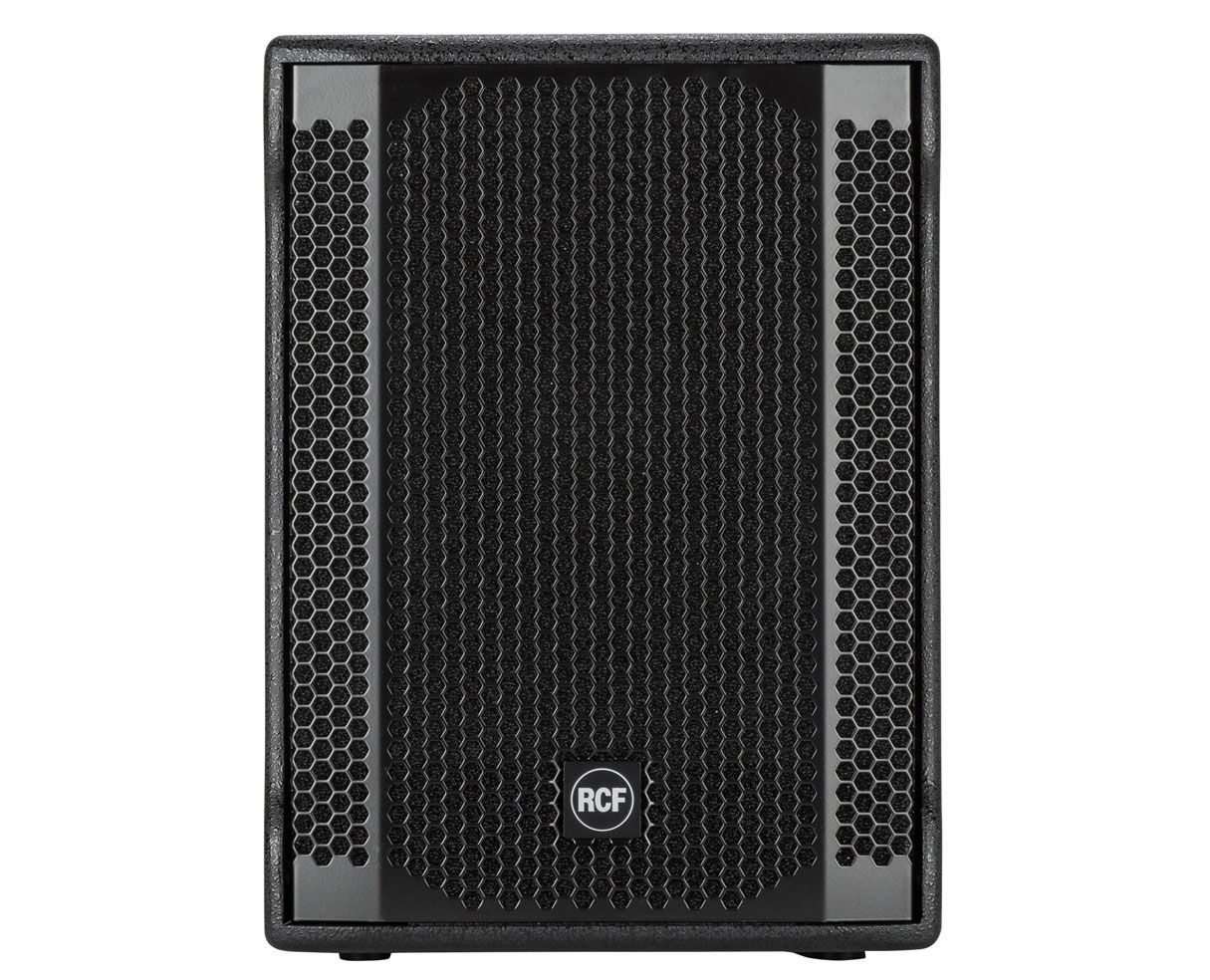

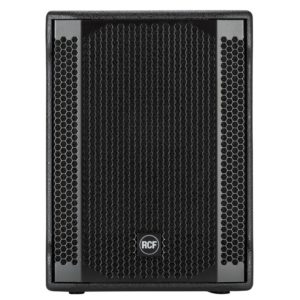

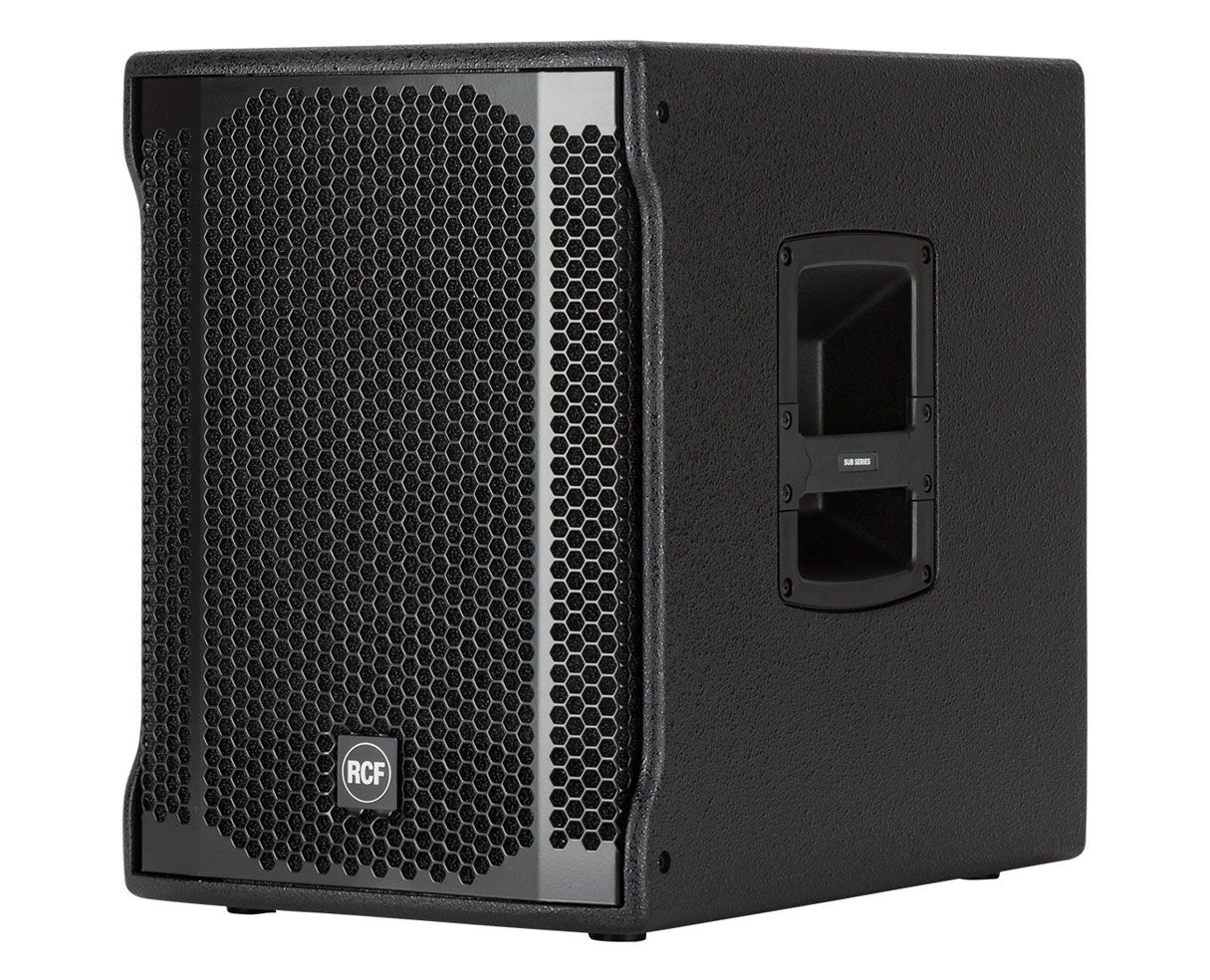

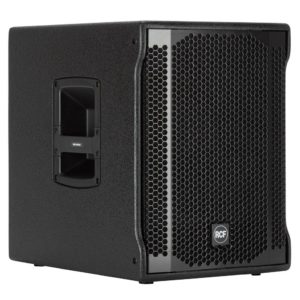

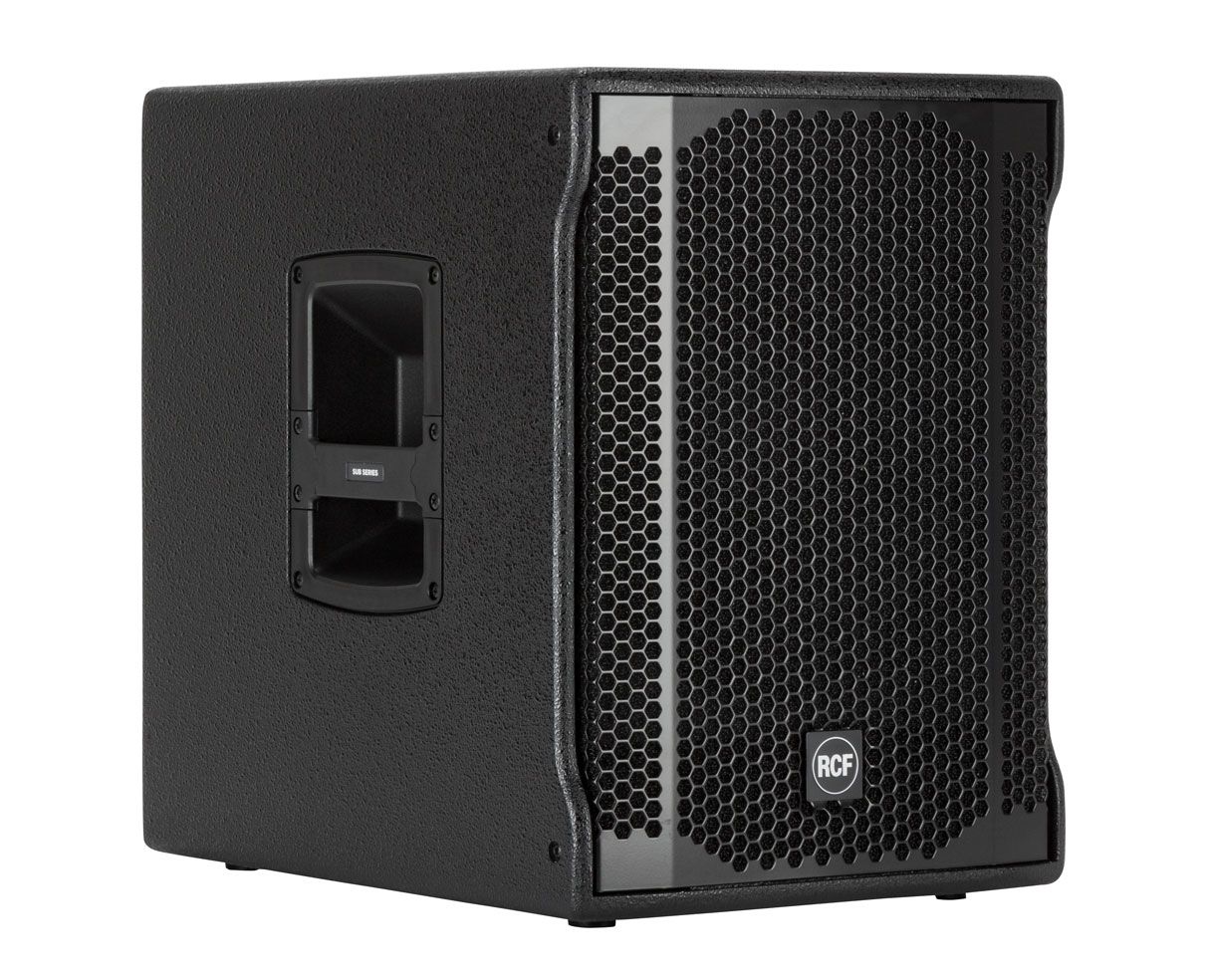

RCF Sub 702-AS II

Housing a 12” woofer, the SUB 702-AS II, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to 8” or 10” speakers, creating small but powerful satellite systems with outstanding performance. Thanks to its compact size it can easily be carried and is very quick and easy to start using the built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the satellite.
SPL – HIGH POWER OUTPUT
Superior and incredible SPL levels guaranteed also in open air and at long distance.
INTEGRATED DSP
The built-in digital stereo crossover with adjustable crossover frequency allows SUB 702-AS II to be easily and quickly set up as a sub-satellite speaker system.
COMPATIBLE WITH RCF PROFESSIONAL SPEAKERS
The SUB 702-AS II is designed to integrate seamlessly into RCF professional speakers. The bass reflex design guarantees a deep, linear power response while the 2.5’’ voice coil design woofer offers the minimum of power compression. SUB 702-AS II is the perfect match for 8”, 10” or 12” satellite speakers. It is also the ideal companion subwoofer for the RCF ART 3, ART 7 or D-Line Series.
DEEP BASS SOUND
Two selectable equalisations to experience the extremely deep response and precise low frequency control.

1400 Watt Digital Amplifier

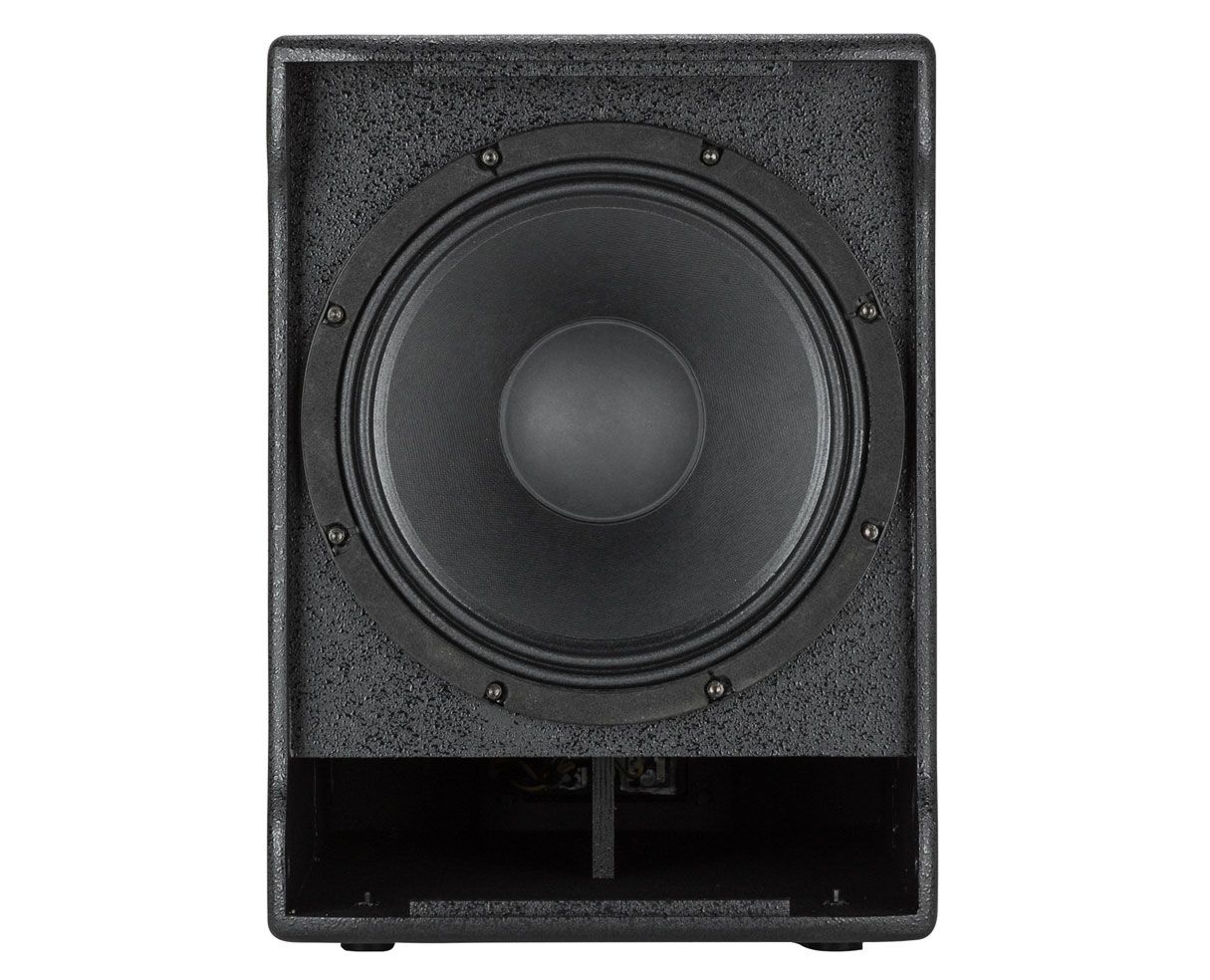

12″ Woofer, bass reflex housing
Stereo crossover
Switchable crossover frequencies
Phase-reverse switch
Electronic equalization, soft limiter and protection

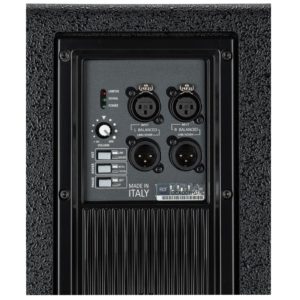

Stereo XLR input, Stereo XLR signal output

APPLICATIONS

Club sound, DJs
Portable PA
Rental
Small theatre

PART NUMBER

13000453 (230V)
13000454 (115V)

ACOUSTICAL SPECIFICATIONS

Frequency Response -3 dB : 40 Hz ÷ 120 Hz
Max SPL : 129 dB
Woofer : 12″, 2.5″ v.c.

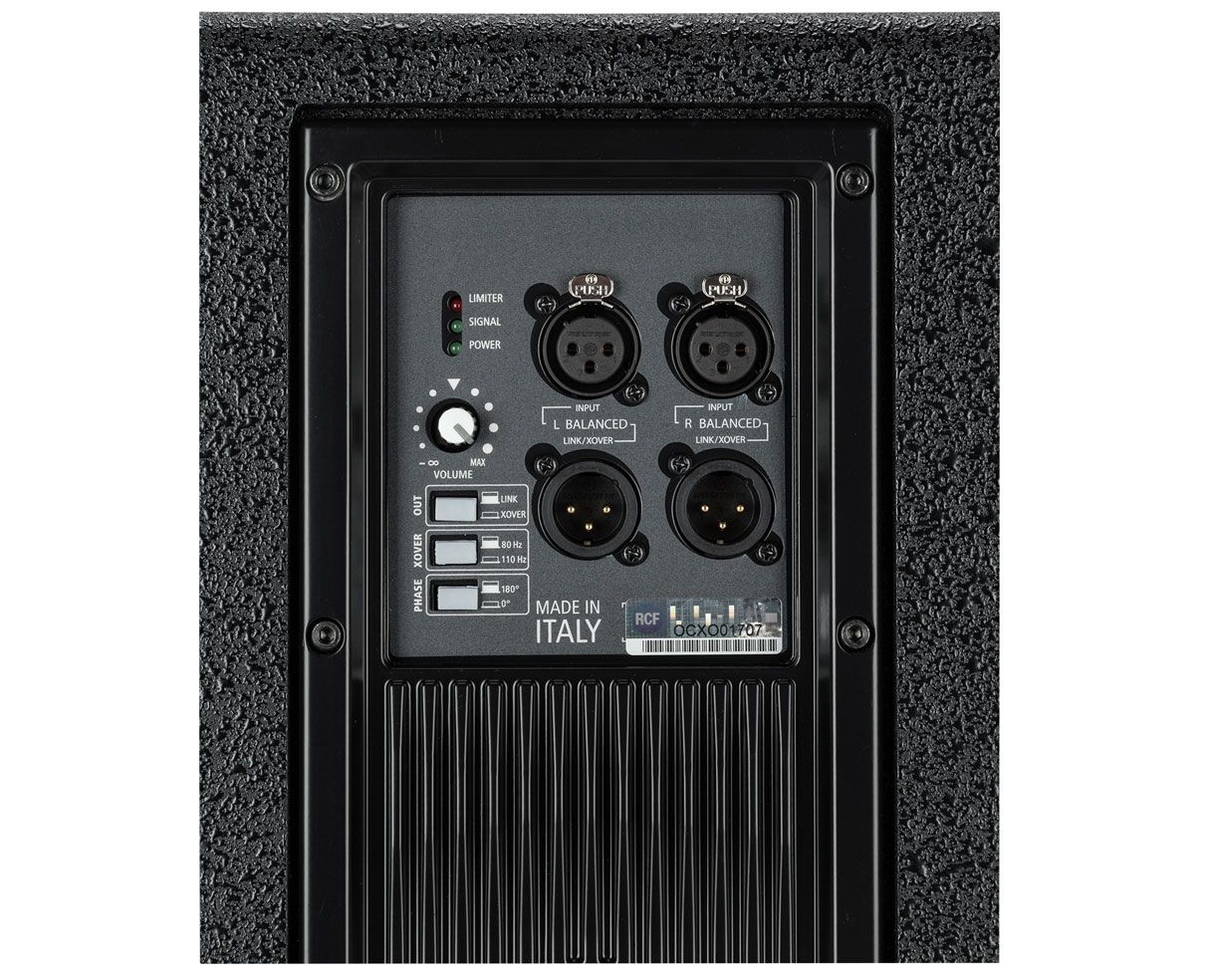

INPUT/OUTPUT SECTION

Input connectors : Stereo XLR
Output connectors : Stereo XLR
Input sensitivity : -2 dBu / + 4 dBu

PROCESSOR SECTION

Crossover frequencies : 80-110 Hz Hz
Protections : thermal, rms
Limiter : soft limiter
Controls : Volume, EQ, phase, xover

AMPLIFIER SPECIFICATIONS

Total power : 1400 W PEAK
Low frequencies : 1400 W PEAK
Total power : 700 W RMS
Low frequencies : 700 W RMS
Cooling : convection
Connections : VDE connector

CABINET

Cabinet Material : Baltic birch plywood

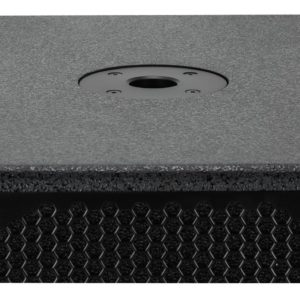

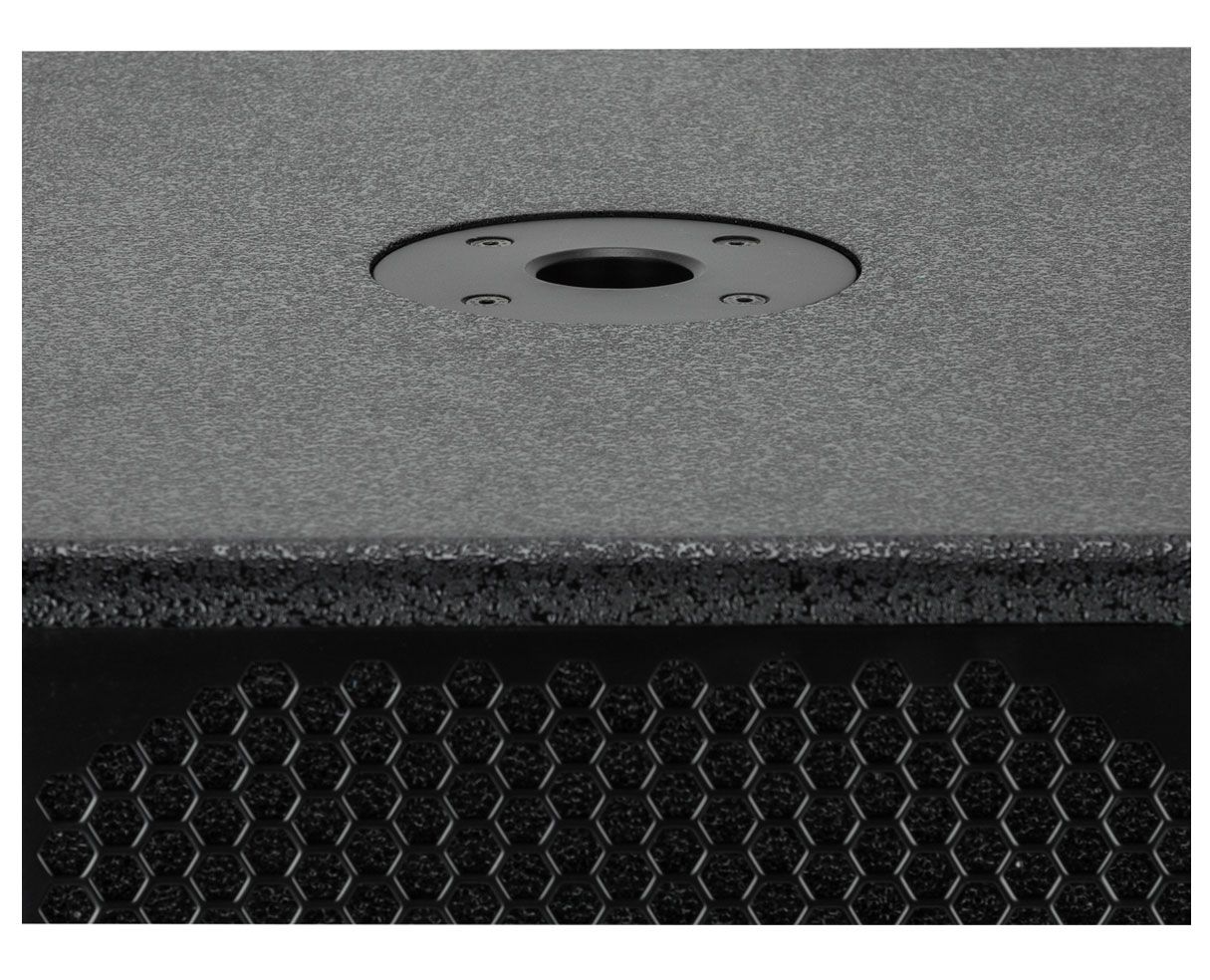

Hardware : Pole mount
Handles : 2 side
Pole Mount/Cap : yes
Grille : Steel
Colour : Black

PHYSICAL SPECIFICATIONS

Height : 487/19.17 mm/inch
Width : 354/13.94 mm/inch
Depth : 498/19.61 mm/inch

SKU: RCF-SUB702ASMK2

Brand: RCF

Weight: 40.000000

Dimensions (WxHxD): 47X14X65
