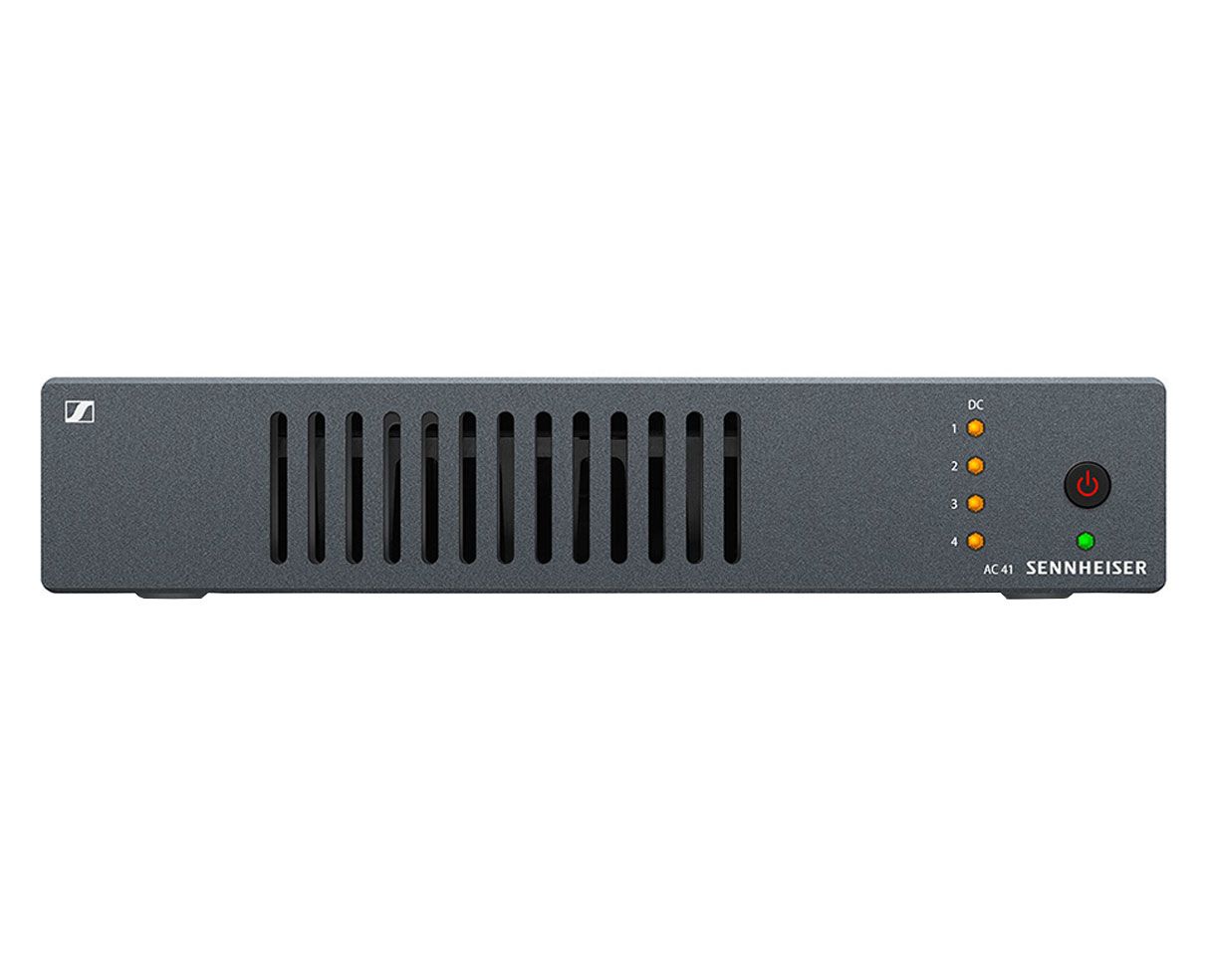

Sennheiser AC 41

Active antenna combiner for evolution wireless G4 systems. The AC 41 operates up to four wireless stereo transmitters from the ew series using one shared antenna. Power is supplied to the SR IEM G4 transmitters over the BNC cables via NT 3-1 power supply (included with the AC 41), making separate power supplies for the transmitters obsolete.

Up to 4 wireless stereo transmitters using one antenna
Power supply via BNC cables ensures efficient powering, no need for additional power supply units for the SR IEM G4
Compatible with G4 and G3 systems

Frequency range

470 – 870 MHz
470 – 608 MHz

Impedance

50 Ω

Dimensions

212 x 168 x 43 mm

Power consumption

max. 3.4 A (with connected transmitters)

Storage temperature

-20 °C to +70 °C (-4 °F to 158 °F)

Operating temperature

-10 °C to +55 °C (14 °F to 131 °F)

Power supply

13.8 V DC (with tabletop power supply unit NT 3-1)
11.4 V DC (protected against reverse supply), 350 mA

RF input

max. 30 mW per input

Transmission loss

0 dB (±1 dB)

Operating relative humidity

5 to 95 %

SKU: SEN-AC41

Brand: Sennheiser

Weight: 4.350000
