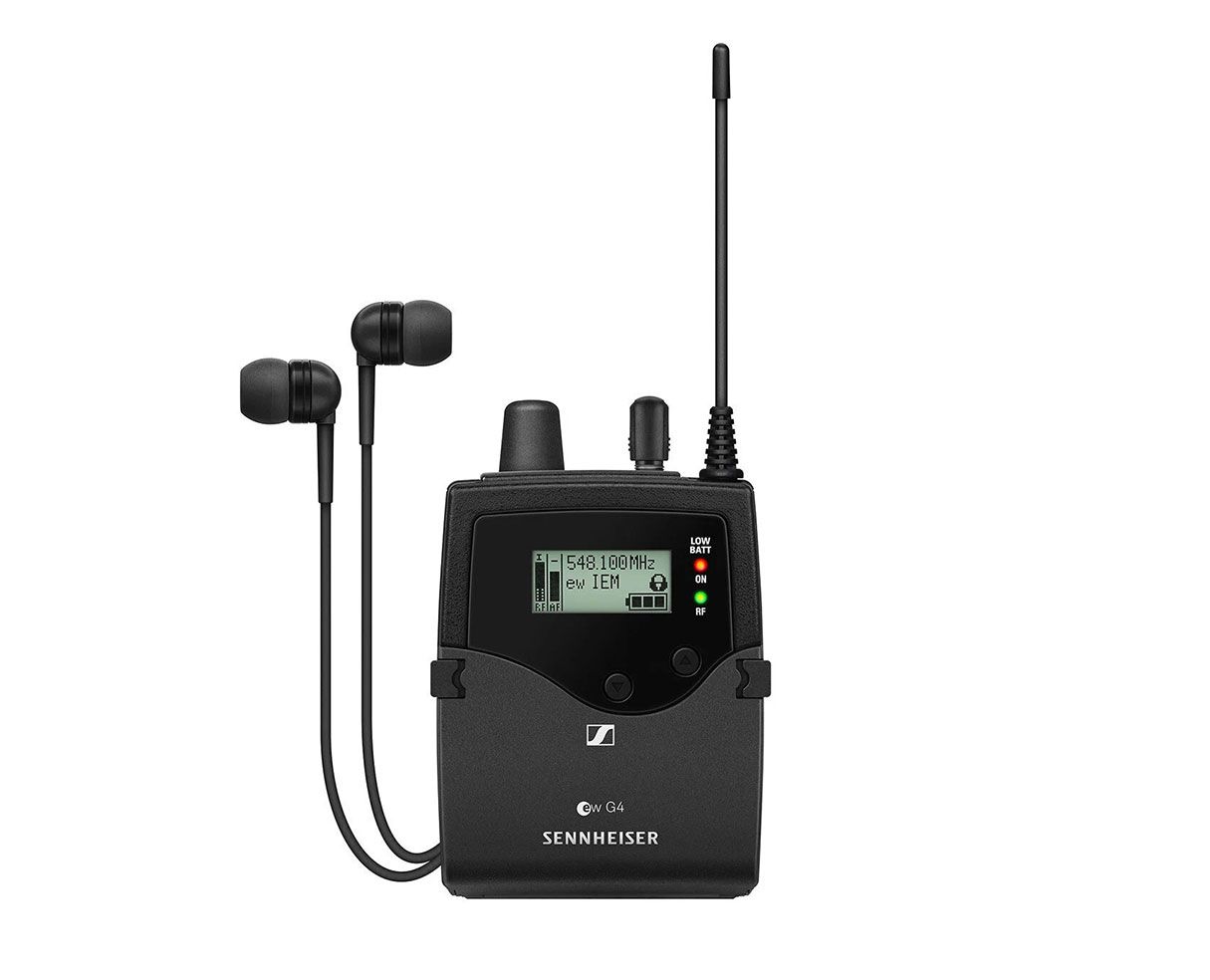

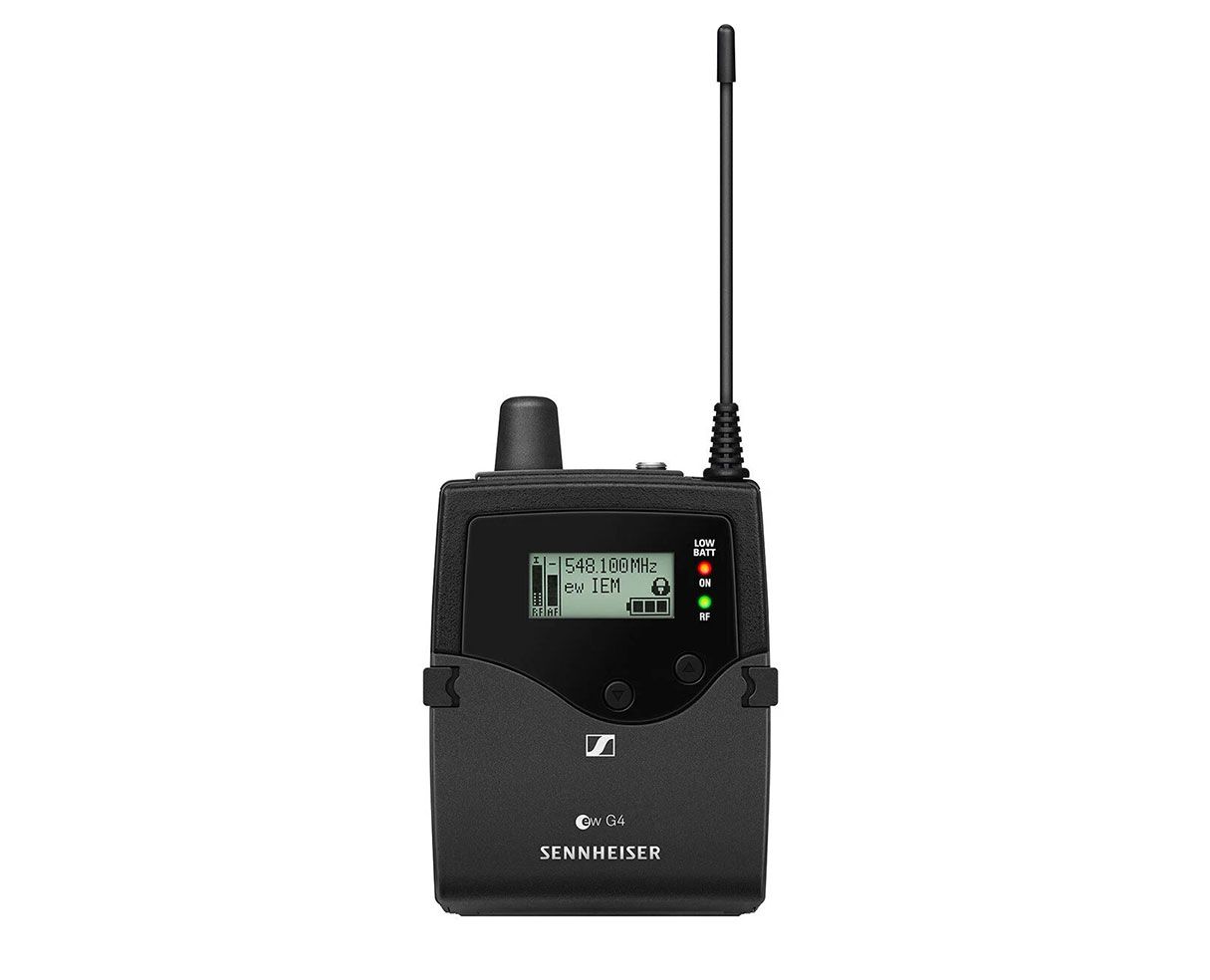

Sennheiser EK IEM G4-G

Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.

Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Compatible with Sennheiser WSM control software for flexible frequency allocation
Up to 16 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission Range: up to 100 meters / 300 feet
High RF output power (up to 50 mW) depending on country regulations

Frequency Range

G: 566 – 608 MHz

Dimensions

82 x 64 x 24 mm

Compander

Sennheiser HDX

Thd, Total Harmonic Distortion

≤ 0.9 %

Signal-To-Noise Ratio

90 dBA

Switching Bandwidth

up to 42 MHz

Peak Deviation

±48 kHz

Nominal Deviation

±24 kHz

Operating Time

4 to 6 hours (depending on volume level)

Modulation

Wideband FM

Power Supply

2 AA batteries, 1.5 V or BA 2015 accupack

Current Consumption

at nominal voltage: approx. 140 mA
with transmitter switched off: ≤ 25 A

Adjacent Channel Rejection

Typically ≥ 65 dB

Limiter

–18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off

Powering

3 V battery / 2.4 V rechargeable battery

Receiving Frequency

1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels

Rf Sensitivity

< 4 μV, typ. 1.6 μV for 52 dBA rms S/N Squelch 5 to 25 dBµV, adjustable in steps of 2 dB Bass Boost +8 dB at 8 kHz Temperature Range -10 °C to +55 °C Receiver Principle Adaptive diversity Blocking ≥ 80 dB Audio-Output-Power 2 x 100 mW at 32 Intermodulation Attenuation Typically ≥ 70 dB SKU: SEN-EKIEMG4-G Brand: Sennheiser Weight: 0.700000
