Yorkville EF10P

10-inch / 1.5-inch – 600 watts
In the 1980’s, Yorkville Sound changed the face of high-powered portable speakers with the launch of the élite series. Indestructible wood cabinets with high output drivers offered PA professionals & weekend warriors alike a new level of high SPL speakers in portable packages. 30 years later, and we are changing the rules again.

Completely Redesigned Next Generation élite 600-watt Front of House Box
ABS Coated Birch Plywood Cabinet Construction
Multiband DSP Limiting with 4 Playback Performance Modes
5-inch Titanium Diaphragm Compression Driver
10-inch Neodymium Woofer with 2.5-inch Voice Coil
iOS and Android App for Added Cabinet Control
Made in Canada

System Type : 2-Way
Active or Passive : Active
Power Rating (Watts) : 600 Watts (1200 Watts Peak)
Max SPL (dB) : 129dB Peak (123dB Continuous)
Frequency Response (Hz +/- 3dB) : 48 – 20k (Hz +/- 3dB)
Crossover Frequency (Hz) : 1400
Driver Configuration : LF – 10-inch, HF – 1.5-inch Diaphragm
HF Driver(s) : 1.5 Inch Voicecoil (Titanium Diaphragm)
HF Dispersion (°H x °V) : 90×30
LF Driver(s) : 10-inch neo magnet w/2.5-inch Voice coil
HF Power Amplifier (Watts) : 100
HF Amplifier Type : 2-Tier High Headroom
LF Power Amplifier (Watts) : 500
LF Amplifier Type : Class-D
Power Cable : 25 ft (7.6m) Heavy Gauge Detachable IEC
Input Impedance (Bal/UnBal) : 95KOhms / 90kOhms
Input Sensitivity (Vrms Sine) : +4dBv / 1.23V
Bar Handles : 1 x Side / 1 x Top
Flypoints : 8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side) + 1 Pullback (Back)
Pole Mount Adapter (1 3/8″-3.5cm) : 1 Bottom (1 3/8-inch / 3.5cm)
Enclosure Materials : ABS Coated Baltic Birch Plywood
Dimensions (DWH xbackW, inches) : 13 x 13.7 x 20 x (Back Width) 11.1
Dimensions (DWH xbackW, cm) : 33 x 34.8 x 50.8 x (Back Width) 28.2

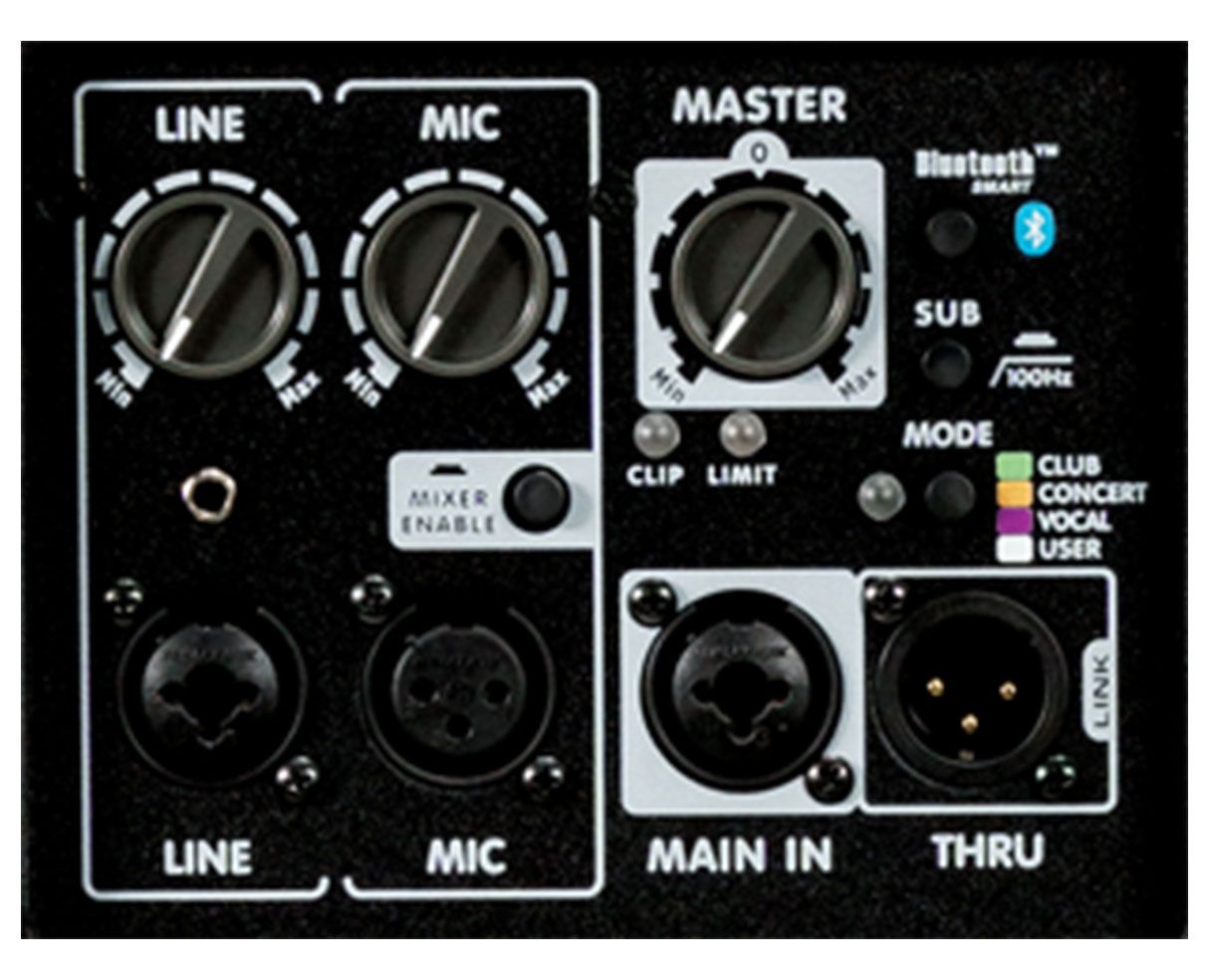

In / Out Connections :

1 x XLR & 1/4-inch Combi-jack, 1/8″ Line Inputs
1 x XLR microphone Input
1 x XLR & 1/4-inch Combi-jack Main Input
1 x XLR-M Thruput

Controls

Mixer Enable
Mic Input w/level
Line Input w/level
DSP Mode (Club, Concert, Vocal, Custom)
Sub (100Hz HP Filter)
Bluetooth Control Enable
Master Level

SKU: YOR-EF10P

Brand: Yorkville

Weight: 43.000000
