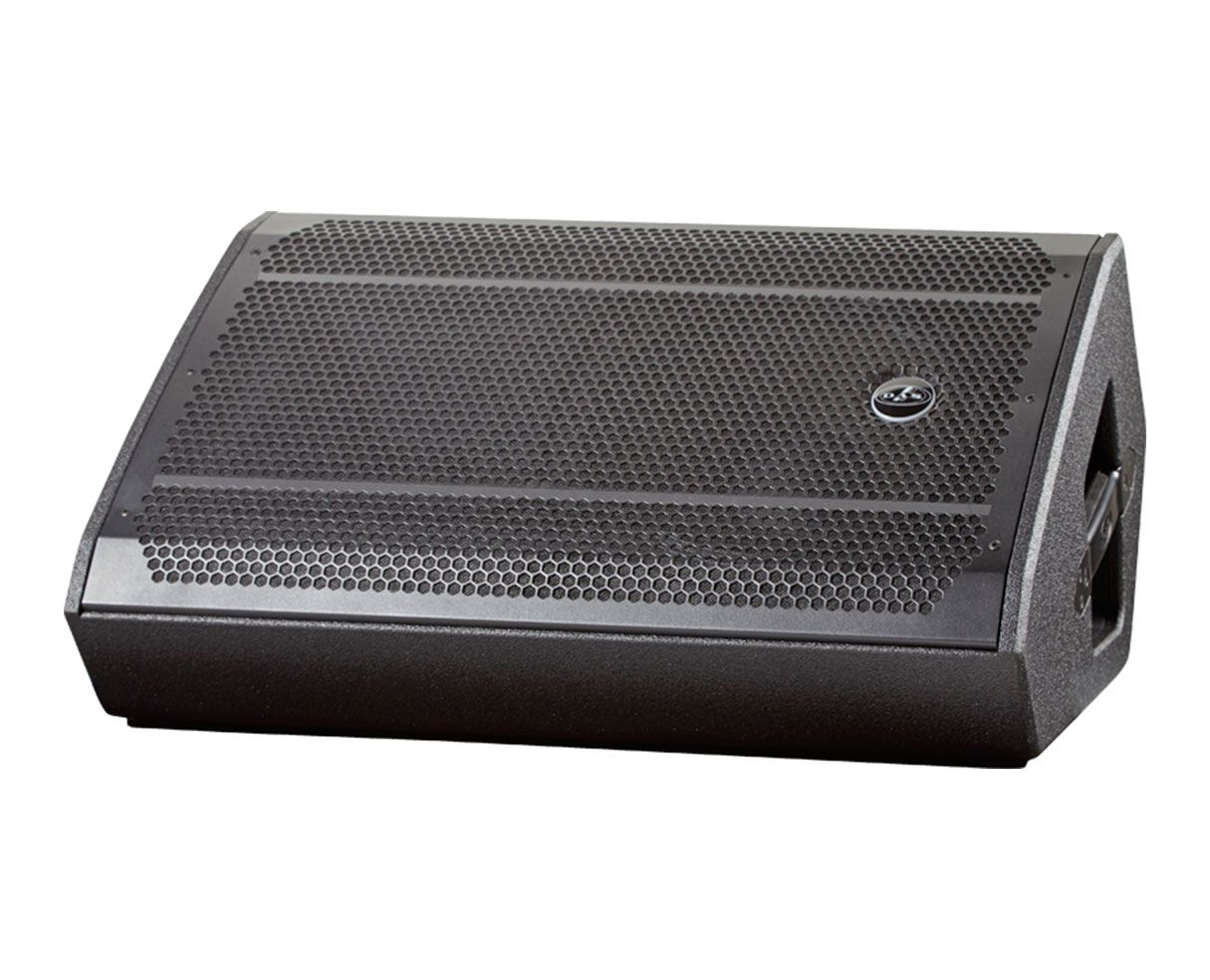

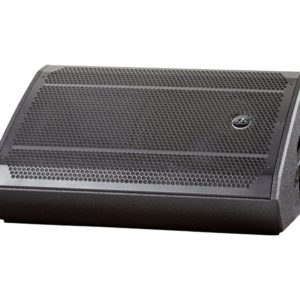

D.A.S. Audio Action-M512A

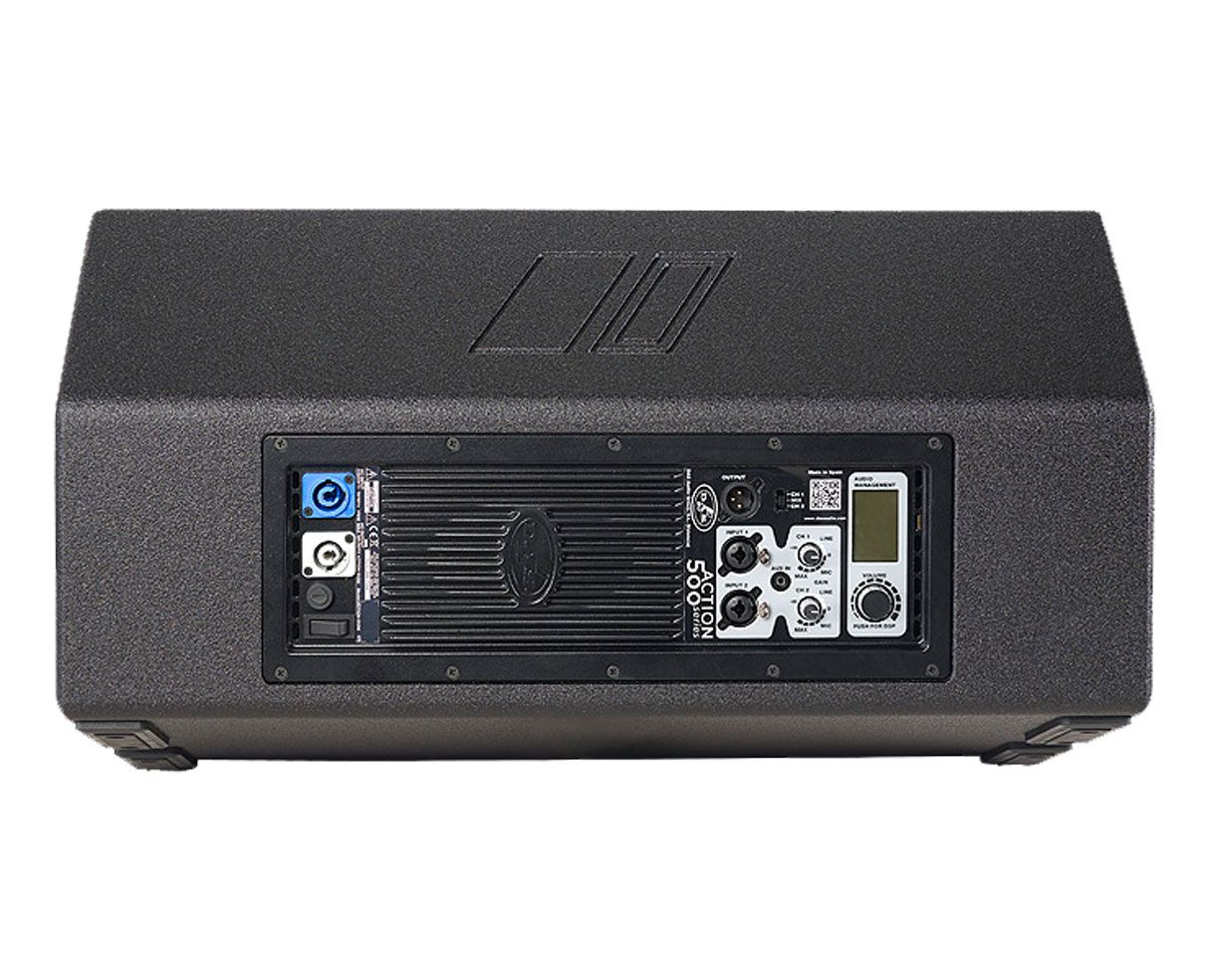

ACTION-M512A is an active stage monitor designed to deliver a highly versatile solution, from fixed installations to the popular portable monitor application. Its rotatable horn with 80º x 50º dispersion means the enclosure can also be used as a PA.As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market. The series’ full range of active tops is complete with two balanced XLR inputs for mic and line, an additional 3.5 mm mini jack input, and a powerCON connection.The system has a 12MI4 speaker for low frequencies and an M-34 compression driver for high frequencies which, together with the 1000 Wpeak Class D amplifier, deliver outstanding performance. The DAScontrol interface uses a high-range 24-bit DSP and rear LCD screen to enable the selection of presets, EQ modes, delay, gain control and signal source mix.

Active monitor biamp systemDual-channel 1000 Wpeak Class D amplifierBirch plywood enclosureDurable ISO-Flex paint to withstand the most demanding environmentsDAScontrol interface for easy setup and adjustmentDSP with presets and LCD screenAmplifier Power : 1000 W PeakClass D, BiamplifiedFrequency Range (-10 dB) : 60 Hz – 20 kHzRated Peak SPL at 1 m : 130 dBDispersion : 80º x50º (Rotatable)Enclosure Material : Birch PlywoodColor/Finish : Black/ISO-flex paintConnectorsInput : 2 X Female XLRAUX Input : 3.5 mm mini JackLOOP Thru : Male XLRAC Input : powerCONAC Requirements : 115 V, 2.2 A, 50 Hz/60 Hz, 230 V, 1.1 A, 50 Hz/60 HzDimensions (H x W x D) : 420 x 645 x 318 mm, 16.5 x 25.4 x 12.5 in

SKU: DAS-ACTIONM512A

Brand: D.A.S. Audio

Weight: 48.000000
