JBL SRX910LA AF

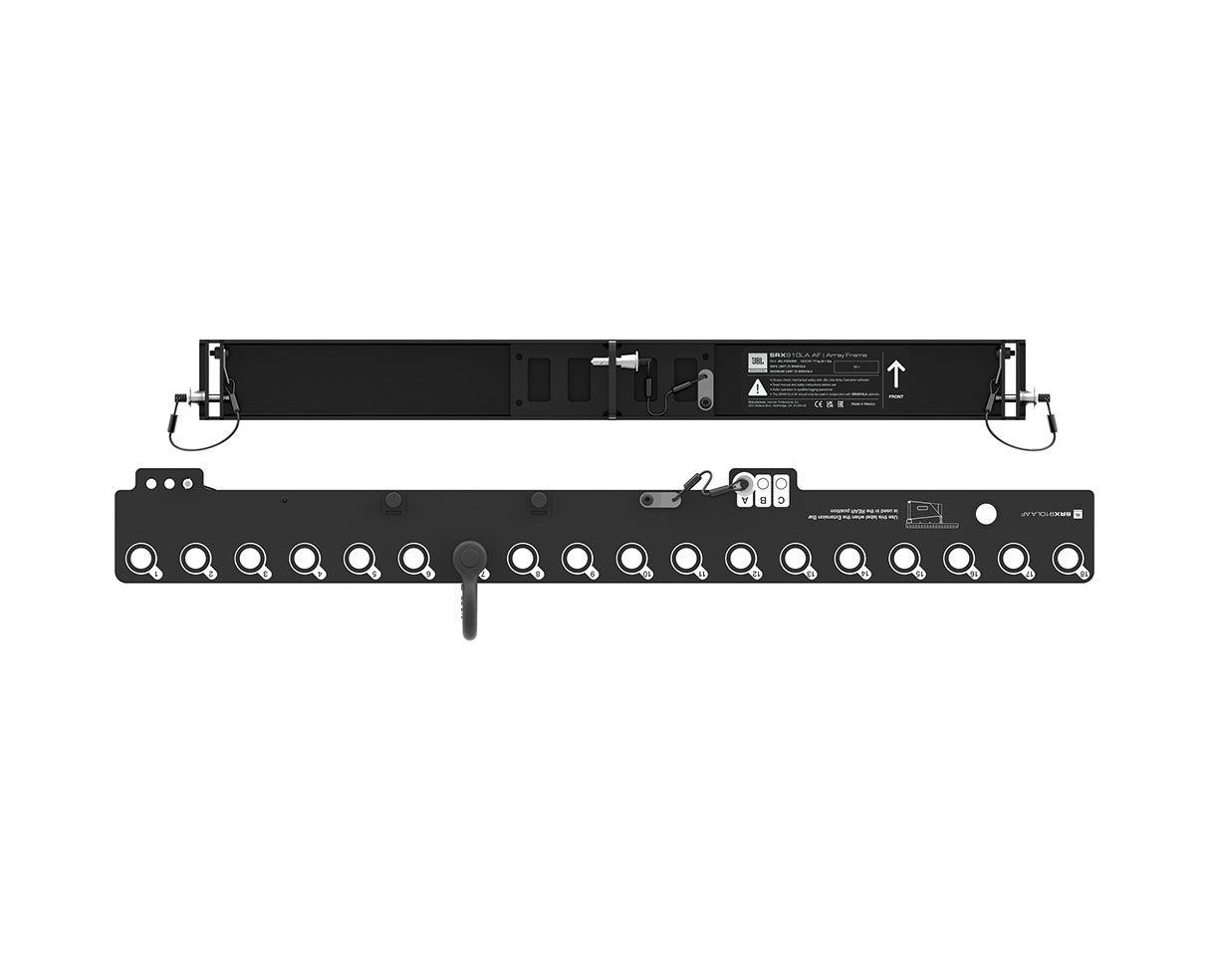

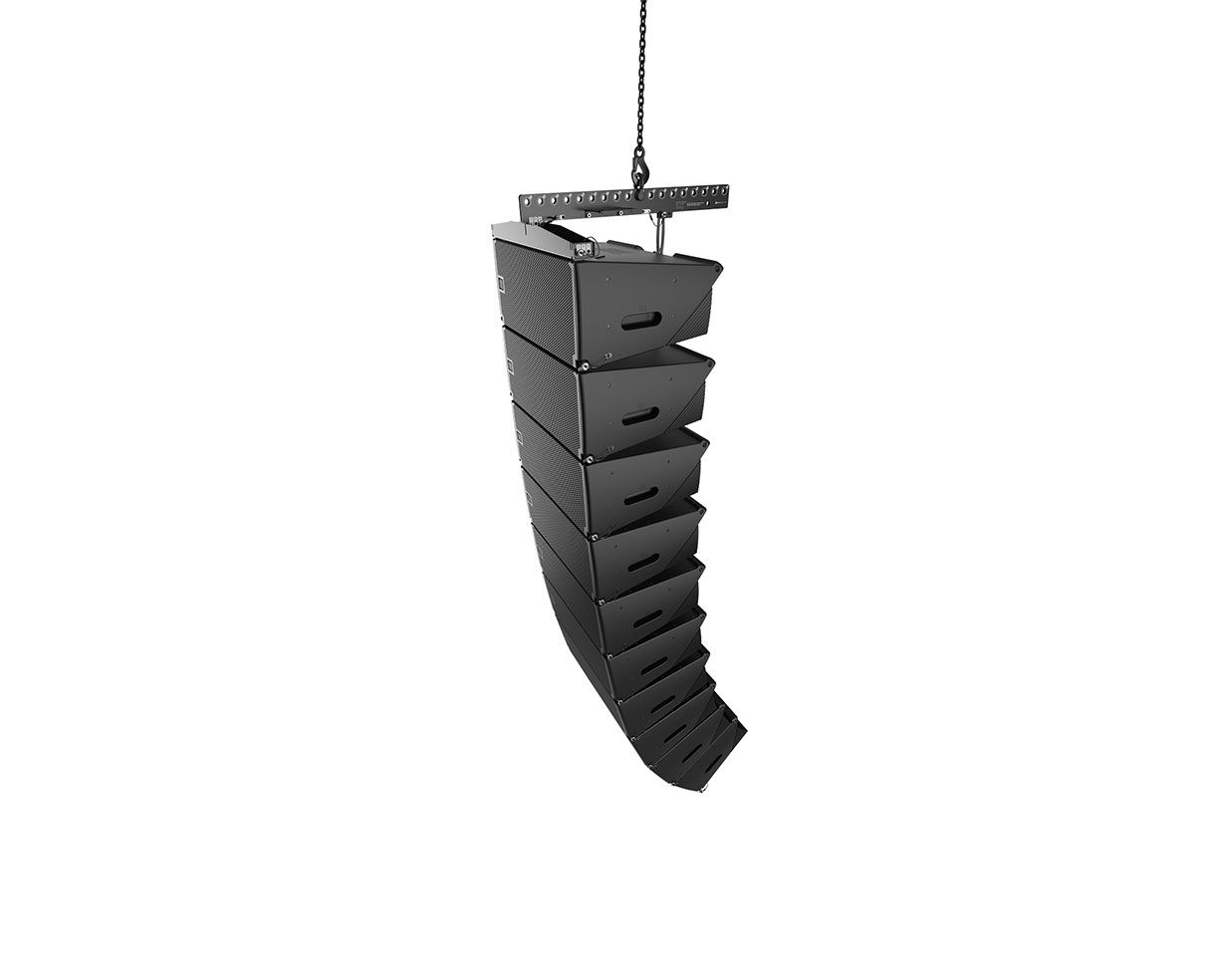

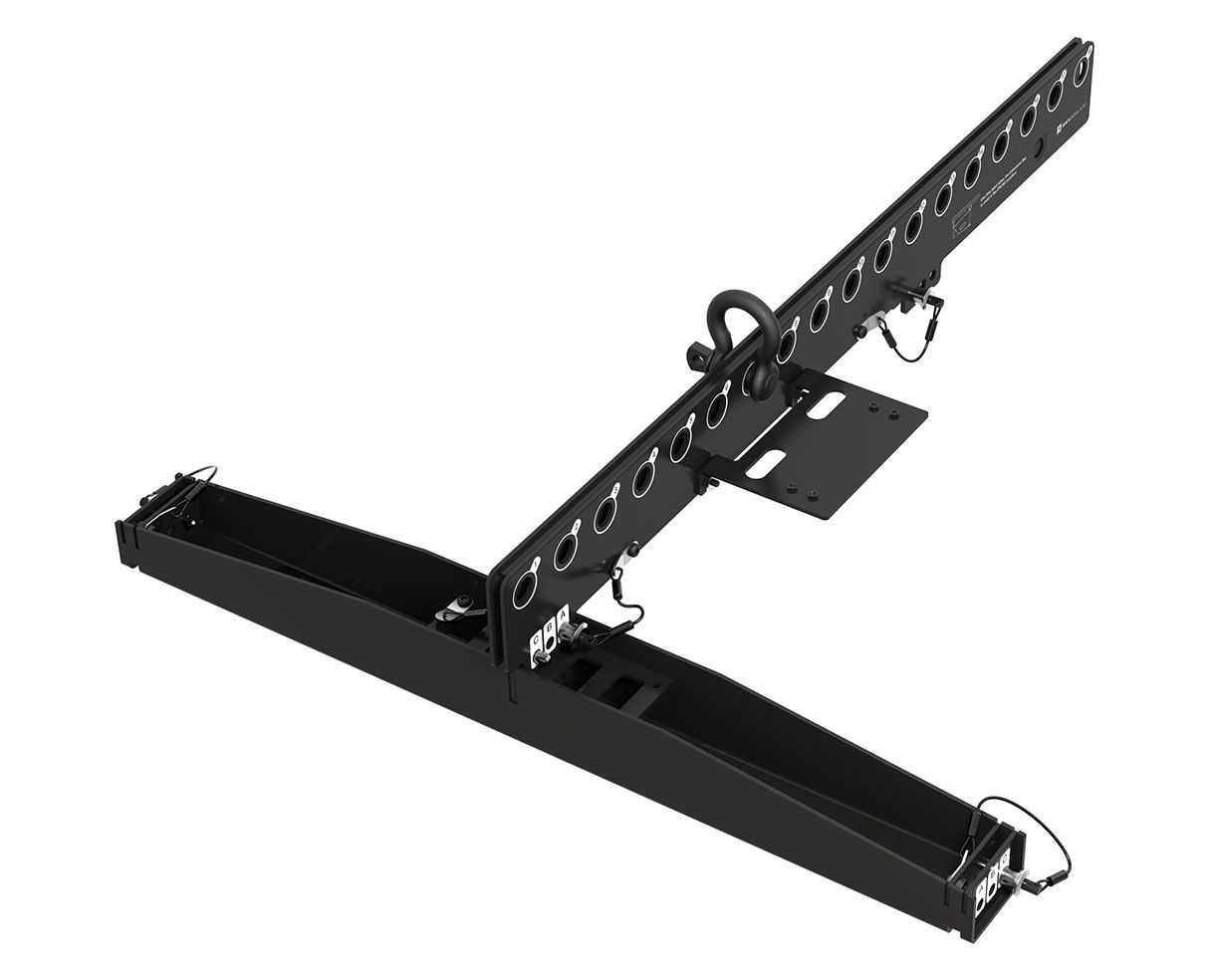

The SRX910LA AF is a lightweight and compact array frame for suspending SRX906LA arrays. The array frame was designed to work with single-point and front-back suspension methods. For single-point applications, the array frame can be used in conjunction with the VTX RC500 rotating clamp, allowing smaller SRX906LA arrays to be suspended from standard size trusses or pipes. The two-piece design is comprised of one extension bar and one spreader bar. The extension bar can extend to the front or rear of the frame to accommodate both uptilt and downtilt aiming options. Three connection points are available for attaching the extension bar to the spreader bar,allowing for precise control of shackle positioning for single-point applications.
Compact And Lightweight Design

Precision pick-point resolution
Two-part collapsible design
Support for third-party laser inclinometers
Support for up to (16) SRX910LA
Compatible shackle size: 1/2 in

Physical

Construction : High-grade steel with anti-corrosion coating
Finish : Black powder coat
Compatible Shackle Size : 1/2-inch
Compatible Lasers : TEQ-SAS, RECLINE

Mechanical Limits1

Safe Limit : (14) SRX910LA
Maximum Limit : (16) SRX910LA
Dimensions 2 : 100 mm x 488 mm x 655 mm (3.9 in x 19.2 in x 25.8 in)

SKU: JBL-SRX910LAAF

Brand: JBL

Weight: 17.000000
